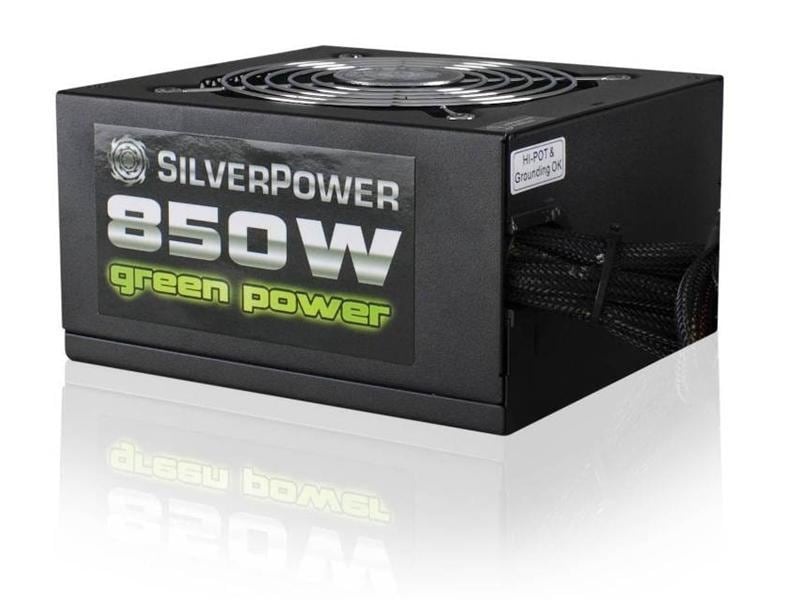

Silver Power SP-S850 850W PSU
Produktinfo

Silver Power SP-S850. 80 Plus Bronze certified 850W ATX 12v Power supply. Advanced Dual Forward Converter circuit design for added reliability and efficiency. Extra long cables to fulfill all demands.
Smart and Silent Fan Control [S2FC], one of the
best performance noise controller available on the market. Active Power Factor Correctin [99% PF] for reduced noise. 12cm double ball, ball bearing fan for increased airflow and lifetime and reduced noise levels. 4x PCI-Express connectors to support high end graphics cards


Features:

80 PLUS Bronze efficiency.
Silver Power SP-S850 utilizes advanced DC-to-DC circuitry and meets 80 PLUS Bronze certification standards for up to 85% energy-efficiency, reducing wasted energy and lowering the amount of excess heat generated. Silver Power High reliability Aluminum Electrolytic capacitors for increased product life and reliability.
Contents and Specifications:
- Extra long cables to fulfill all demands.
- Up to 85% efficiency, 80 Plus Bronze approval.High reliability Aluminum Electrolytic capacitors
for increased product life and reliability. - Active Power Factor Correctin [99% PF] for reduced noise.
- Advanced Dual Forward Converter circuit design for added reliability and efficiency.
- Smart and Silent Fan Control [S2FC].
- 12cm double ball, ball bearing fan for increased airflow and lifetime and reduced noise levels.
- 4x PCI-Express connectors to support high end graphics cards.
- Total Protection with Over Voltage, Over
Power and Short Circuit Protection. - DC to DC Voltage Regulator modules for +3.3V & +5V
- RoHS compliant, PFC Harmonics compliant, EN61000-3-2:2000, Meet Erp requirement.
- Safety approvals: TUV, Semko, CB & CE.
- 1x SP-S850 PSU
- 1 x Power cord
- 4 x Chassis screws
- 1 x User manual
Cables Configuration:
Fixed
- 1 x M/B (20 + 4 P) 550 mm
- 1 x ATX12V (4 P) 550 mm
- 1 x EPS12V (8P) 550 mm
- 2 x PCI-E (6+2P) 550 + 100 mm
- 2 x PCI-E (6+2P) 550 + 100 mm
- 2 x 3 SATA (5P) 550 + 150 + 150 mm
- 2 x 3 SATA (5P) 550 + 150 + 150 mm
- 1 x 2 SATA (5P) 350 + 150 mm
- 1 x 3 Molex (4P) 550 + 150 + 150 mm
- 2 x 2 Molex (4P) 350 + 150 mm
Modular
- 1 x 2 FDD 1 140 + 140 mm
Spesifikasjoner
Generelt
Garanti (måneder) |
6 |
Tilstand | Brukt |
Status | Testet |
Produktnummer | 40107 |
Enhetstype |
Nätaggregat - aktiv effektfaktorkorrigering (PFC) - intern |
Spesifikasjonssamsvar |
ATX |
PSU-formfaktor |
ATX |
EAN | 4250078133100 |
Strømenhet
Inngangsspenning |
AC 110-240 V |
Frekvens nødvendig |
50 - 60 Hz |
Strømtilkobling for CPU (4+4-pin) | 1 + 1 8-pin |
Strømtilkobling for Floppy (4-pin mini) |
2 |
Strømtilkobling for Molex (4-pin) | 7 |
Strømtilkobling for hovedkort (20-4-pin) | 1 |
Strømtilkobling for PCI Express (6+2-pin) | 4 |
Strømtilkobling for SATA (15-pin) | 14 |
Utgangsspenning |
+3.3, +5, ±12 V |
Effektkapasitet |
850 Watt |
Utgangsstrøm |
+3.3V - 25 A +5V - 25 A +12V - 70 A -12V - 0.5 A +5VSB - 3 A |
Effektivitet | 85% |
80 PLUS-sertifisering |
80 PLUS Bronze |
Diverse
MTBF |
100,000 timer |
Kjølesystem |
120 mm |
Egenskaper |
Strömbrytare, överspänningsskydd, överströmskydd, elektronisk fläkthastighetsomkopplare, kortslutningsskydd, ej modulär |
Tilpassede standarder |
TUV, EN 61000-3-2, SEMKO, CB, RoHS |
Størrelse og vekt
Bredde |
15 cm |
Dybde |
15.9 cm |
Høyde |
8.6 cm |
Vekt |
2.6 kg |
