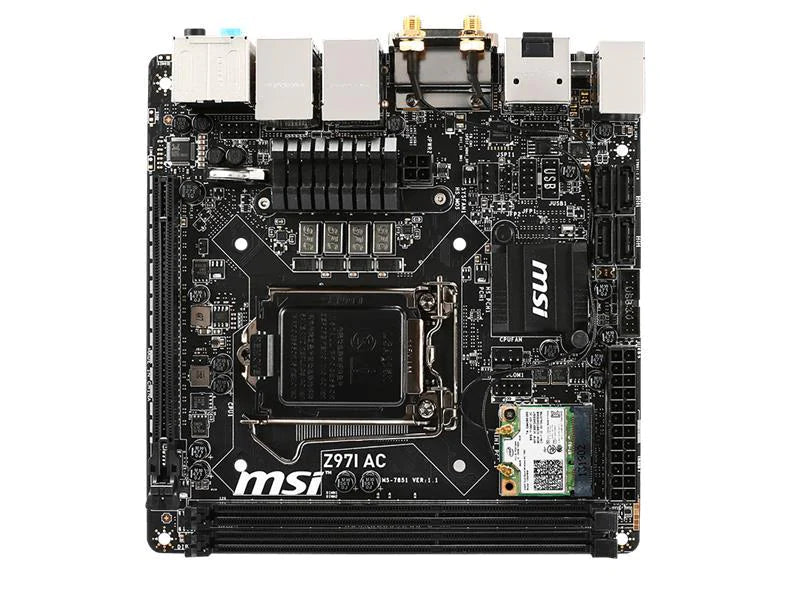

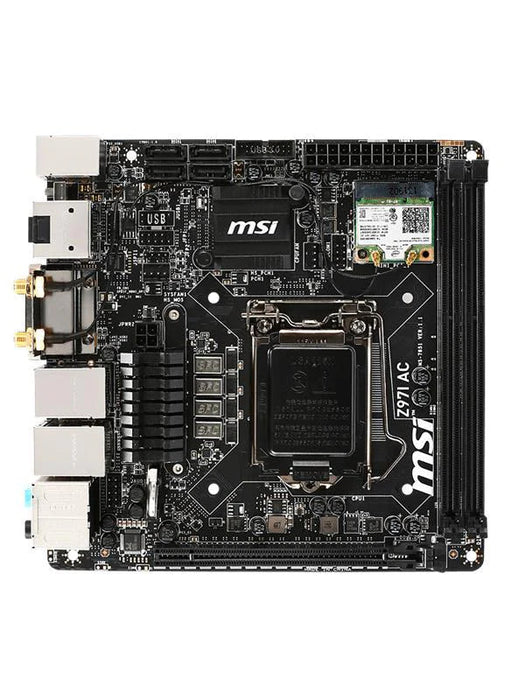

MSI Z97I AC, Socket-1150

  • 999,00 kr

0 igjen!

Kun hovedkort!

  • Supports 4th and 5th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1150 socket
  • Supports DDR3-3000(OC) Memory
  • USB 3.0 + SATA 6Gb/s
  • Military Class 4: Top Quality & Stability
  • OC Genie 4: Overclock in 1 Second
  • Click BIOS 4: Easily Fine-tune Your System
  • 4K UHD Support: Ultra-high Definition Visual Experience
  • Command Center: Control & Customize Your PC Settings
  • Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds
  • Smart Utilities: Easily Setup & Configure Intel® Technologies
  • Wi-Fi 802.11ac, Bluetooth 4.0, Intel® Wireless Display




Military Class 4

Military Class 4 is the next step in high quality components. The Super Ferrite Choke and Solid CAP will make sure that your PC runs more stable under extreme gaming conditions.

Super Ferrite Chokes

Super Ferrite Chokes use a Ferrite core that is Super-Permeable. This allows the Super Ferrite Chokes to run at a 35 degree Celsius lower temperature, have a 30% higher current capacity, a 20% improvement in power efficiency and better overclocking power stability.

SOLID CAP

With their aluminum core design and Japanese made quality, Solid CAPs are made for high-end design motherboard. Not only do Solid CAPs could provide lower Equivalent Series Resistance (ESR), but also work firmly for over-10-year.

CLICK BIOS 4

The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8. Not only that it also reacts faster, runs smoother and has better mouse support. And this all comes with many cool features. Click on the button on the right to visit our dedicated BIOS page and learn more.


SOFTWARE

COMMAND CENTER

MSI's Command Center software is a very powerful tool to push your motherboard to the max. With a very intuitive touch ready interface, Command Center allows users to tune settings to increase system stability, maximize overclocking performance and adjust cooling features.



LIVE UPDATE 6

MSI Live Update is renewed! Our popular software automatically downloads and installs the latest drivers, BIOS and software. Rest assured while your system is always configured using the latest software so you get the maximum performance and stability.





UNLIMITED RAMDISK

MSI Command Center integrates an unlimited RAMdisk. With a RAMdisk you can create a virtual drive from your system memory enabling speeds 20x faster than a modern SSD.

  • Speed up system performance
  • Load complete game images
  • Speed up games, apps and browser

4K UHD SUPPORT

Enjoy awesome 4K UHD video playback with MSI 9 series motherboards. MSI motherboards that are equipped with HDMI port(s) support the latest 4K UHD (2160p ultra-high definition) resolution to provide an unprecedented breathtaking visual experience.

FAST BOOT

No more seamless waiting for your O/S to be loaded! MSI Fast Boot helps to make your system boot lightning fast. MSI Fast Boot also features a GO2BIOS button. Simply click it to restart your PC and go straight to the system BIOS.

Generelt

Garanti (måneder)

6

Tilstand Brukt
Status Testet
I/O Shield Ja
Produktnummer Z97I AC

Produkttype

Hovedkort - mini-ITX

Brikkesett type

 Intel Z97 Express

Prosessorsokkel LGA1150-sokkel
Kompatible prosessorer Pentium, Celeron, Core i5, Core i3, Core i7
EAN 4719072345921

Støttet RAM

Maks størrelse

16 GB

Teknologi

DDR3

Bussklokke

1600 MHz, 1333 MHz, 1066 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2600 MHz (O.C.), 2400 MHz (O.C.), 2200 MHz (O.C.), 2133 MHz (O.C.), 2000 MHz (O.C.), 1866 MHz (O.C.), 3000 MHz (O.C.)

Støttet RAM-integritetskontroll

Non-ECC

Registrert eller bufret

Ikke-bufret

Egenskaper

Dobbeltkanalsminnearkitektur, Intel Extreme Memory Profiles (XMP)

Grafikk

Maks allokert RAM-størrelse

1760 MB

Lyd

Type

HD-lyd (8-kanalers)

Audio Codec

Realtek ALC892

Tilpassede standarder

High Definition Audio

LAN

Nettverkskontroller

Realtek RTL8111G / Intel Dual Band Wireless-AC 7260

Nettverksgrensesnitt

Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac

Ekspansjon / Tilkoblinger

Utvidelsesspor

1 x CPU
2 x 240-pins DIMM
1 x PCIe 3.0 x16
1 x PCIe Mini Card (halvlengde)

Lagergrensesnitt

SATA-600 -kontakter: 4 x 7-pin seriell ATA - 4 enheter - RAID 0 / RAID 1 / RAID 10 / RAID 5

RAID-funksjoner

Intel Smart Response Technology

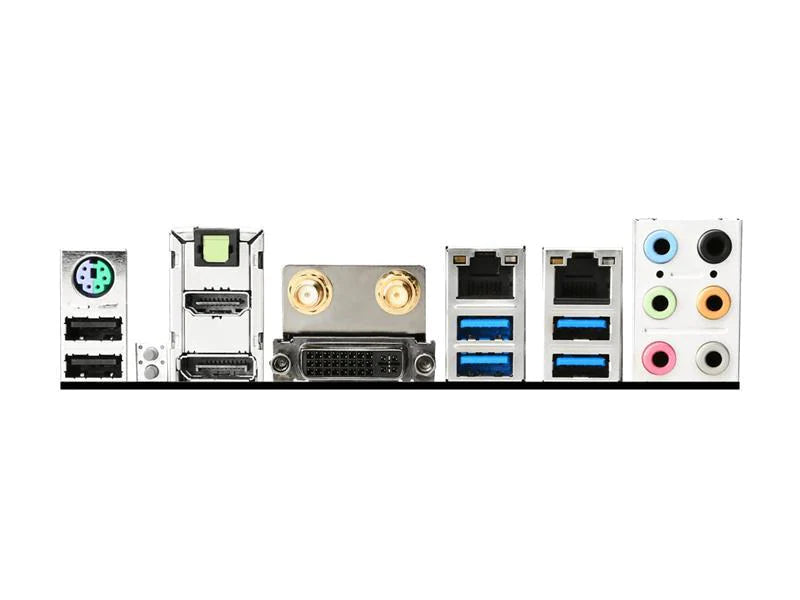

Grensesnitt

1 x PS/2-tastatur / -mus
1 x HDMI
1 x DVI-I
1 x DisplayPort
4 x USB 3.0
2 x USB 2.0
1 x LAN (Gigabit Ethernet)
1 x lydinnlinje - minijakk
1 x lydutlinje (side-surround) - minijakk
1 x lydutlinje (bakre) - minijakk
1 x lydutlinje (senter/subbasshøyttaler) - minijakk
1 x mikrofon - minijakk
1 x lydutlinje - minijakk
1 x TOSLINK

Interne overflater

2 x USB 2.0 - header
2 x USB 3.0 - header
1 x lyd - header
1 x seriell - header

Strømkontakter

4-pin ATX12V-kontakt, 24-pin hovedstrømforsyningskontakt

Egenskaper

BIOS-egenskaper

DMI-støtte, MSI ClickBIOS 4

Maskinvarefunksjoner

 Intel Extreme Memory Profile (XMP)-støtte, Intel Smart Response Technology, Super Ferrite Choke (SFC), Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Wireless Display (WiDi), MSI Military Class IV, OC Genie 4, MSI Fast Boot, Clear CMOS Button

Diverse

Bredde

17 cm

Dybde

17 cm
