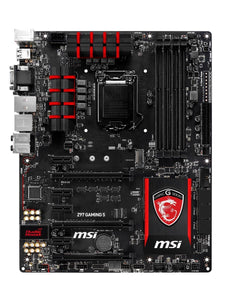

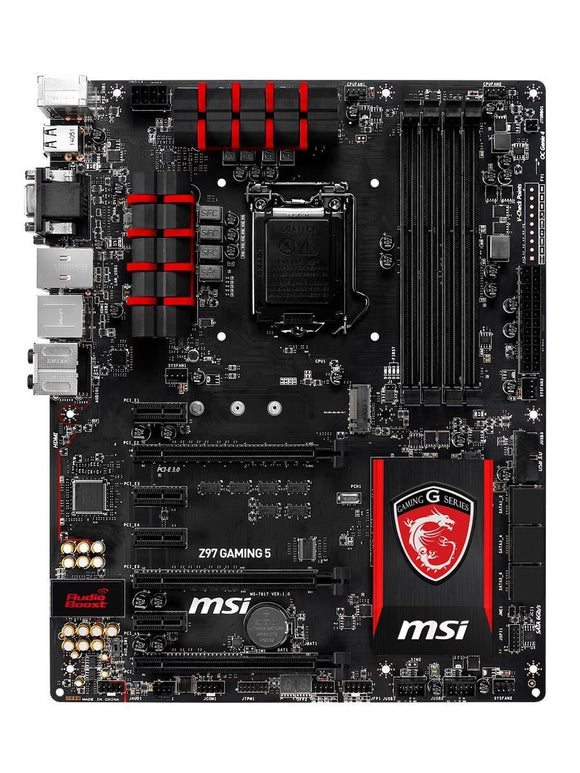

MSI Z97 GAMING 5 - Socket 1150
Produktinfo
Kun hovedkort!
LET THE GAMES BEGIN
MSI® GAMING motherboards are designed to provide gamers with best-in-class features and technology. Backed by the imposing looks of MSI's Dragon, each motherboard is an engineering masterpiece tailored to gaming perfection.
THE BEST GAMING WEAPONS AT HAND
- Amazing sound with Audio Boost 2, powered by Creative Sound Blaster Cinema 2
- USB Audio Power
- The highest frag and the lowest lag with Killer™ E2200 Game Networking
- Push your SSD to the limit with M.2 & SATA Express
- Show off your gaming skills to the world with XSplit Gamecaster
- SteamOS ready out of the box
- Military Class 4 components
- Super stable with Guard-Pro
- Specialized production lines just for GAMING motherboards
- OC Genie 4
- Gaming Device Port
- Boost your FPS with the MSI GAMING APP
- Click BIOS 4 (click here to visit our dedicated BIOS page)
- Optimized for multiple graphics cards (SLI & CrossFire certified)
- Take control with Command Center & Live Update 6
REWARD YOUR EARS WITH TRUE QUALITY
Get ready for ear-drum shattering sound, with MSI Audio Boost 2! With Audio Boost 2 we're delivering the highest audio quality with the use of Creative Sound Blaster Cinema 2 so you can enjoy crystal clear sound and music through 8-channel HD Audio.
ISOLATED AUDIO PCB
With traditional onboard audio the signal is distorted by electromagnetic signals from the rest of the PCB. Audio Boost 2 acts like a dedicated soundcard by physically isolating the audio circuitry which is separated by a red LED path. Less interference gives you a more clear audio signal.
DIRECT AUDIO POWER
Enjoy a heavy caliber audio experience with Direct Audio Power. A dedicated power input to Audio Boost 2 allows for a more powerful and stable power delivery, resulting in a more explosive and pure sound experience.
CREATIVE SOUND BLASTER CINEMA 2
Thanks to Creative Sound Blaster Cinema 2, you're getting amazing surround sound with just stereo headphones or speakers. Creative Sound Blaster Cinema 2 enables you to clearly hear specific sounds in gaming environments. Hear your enemies perfectly, make your ears a decisive tool to finish on top.
DUAL HEADHPONE AMPLIFIERS
Prepare for an eargasm. The built-in dual headphone amplifier rewards your high quality headphone with the most amazing studio level sound quality up to 600O delivered from your gaming PC.
Tired of having to connect your headset in difficult to reach places? MSI GAMING motherboards are designed to be easy to use, featuring front & rear audio outputs fueled by Audio Boost 2.
KILLER™ E2200 GAME NETWORKING
KILL YOUR LAG!
The Killer™ E2200 Intelligent Networking Platform is built for maximum networking performance for online games and high-quality streaming media. Featuring Advanced Stream Detect™, Killer E2200 automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge. With this exclusive, automatic traffic prioritization, games and real-time chat get priority over low-level system chatter, giving you the lowest latency for game data on the most controllable network hardware available.
PUSH YOUR SSD TO THE LIMIT
Enjoy a blazing fast system boot up and insanely fast loading of applications and games with MSI GAMING motherboards. We offer the next generation of high speed storage support through M.2 and SATA Express. M.2 and SATA Express transfer data through a PCI Express 2.0 x2 interface up to 10 Gb/s, making it 67% faster than SATA 3.0 solutions.
Faster storage solutions with M.2
M.2 is the successor to mSATA, offering a 67% performance increase up to 10 Gb/s. M.2 is packed in a small form factor and is compatible with 3 different sizes to fit most storage solutions. All latest generation Intel® based MSI GAMING motherboards feature M.2 storage.
Flexible fast storage with SATA Express
SATA Express introduces a new solution in high speed storage through PCI Express, providing more bandwidth for the latest generation SSDs. We offer flexible solutions with an M.2 to SATA Express converter for more convenience.
Spesifikasjoner
Generelt
|
Garanti (måneder) |
6 |
| Tilstand | Brukt |
| Status | Testet |
| I/O Shield | Ja |
| Produktnummer | Z97 GAMING 5 |
|
Produkttype |
Hovedkort - ATX |
|
Brikkesett type |
Intel Z97 Express |
| Prosessorsokkel | LGA1150 sokkel |
| Kompatible prosessorer | Pentium, Celeron, Core i5, Core i3, Core i7 |
Støttet RAM
|
Maks størrelse |
32 GB |
|
Teknologi |
DDR3 |
|
Bussklokke |
1600 MHz, 1333 MHz, 1066 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2600 MHz (O.C.), 2400 MHz (O.C.), 2200 MHz (O.C.), 2133 MHz (O.C.), 2000 MHz (O.C.), 1866 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.) |
|
Støttet RAM-integritetskontroll |
Non-ECC |
|
Registrert eller bufret |
Ikke bufferet |
|
Egenskaper |
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
Grafikk
|
Maks allokert RAM-størrelse |
1760 MB |
Lyd
|
Type |
HD Audio (8-kanaler) |
|
Audio Codec |
Realtek ALC1150 |
|
Tilpassede standarder |
High Definition Audio, Sound Blaster Cinema 2 |
LAN
|
Nettverkskontroller |
Killer Gaming E2205 |
|
Nettverksgrensesnitt |
Gigabit Ethernet |
Ekspansjon / Tilkoblinger
|
Utvidelsesspor |
1 x CPU 4 x DIMM 240-pins 3 x PCIe 3.0 x16 (dobbelt: x8 modus; tredobbelt: x8, x4, x4 modus; enkelt kort: x16 modus) 4 x PCIe 2.0 x1 |
|
Lagergrensesnitt |
SATA-600 -stikforbindelser: 6 x 7-pins Seriel ATA, 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
|
RAID-funksjoner |
Intel Smart Response Technology |
|

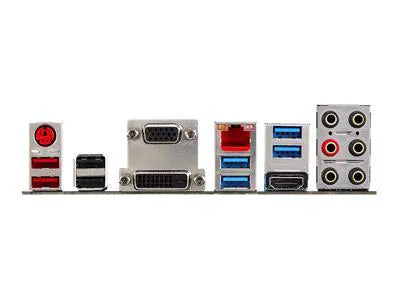

Grensesnitt |
1 x LAN (Gigabit Ethernet) 4 x USB 2.0 1 x HDMI 1 x PS/2-tastatur/mus 4 x USB 3.0 1 x VGA 1 x audio linje-ud - mini-jack 1 x audio linje-ind - mini-jack 1 x audio linje-ud (sidesurround) - mini-jack 1 x audio linje-ud (bagtil) - mini-jack 1 x audio linje-ud (centrum/subwoofer) - mini-jack 1 x mikrofon - mini-jack 1 x DVI-D |
|
Interne overflater |
4 x USB 2.0 - intern stik 2 x USB 3.0 - intern stik 1 x audio - intern stik 1 x seriel - intern stik |
|
Strømkontakter |
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
Egenskaper
|
BIOS-egenskaper |
DMI-understøttet, MSI ClickBIOS 4 |
|
Maskinvarefunksjoner |
Intel Extreme Hukommelses Profil (XMP) support, NVIDIA 2-way SLI Technology Support, Hi-c CAP, Super Charger, Intel Smart Response Technology, Super Ferrite Choke (SFC), AMD 3-vejs CrossFireX teknologisupport, Intel Rapid Start Technology, Intel Smart Connect Technology, MSI Military Class IV, OC Genie 4, Gold Plated Audio Hardware, Clear CMOS Button, MSI Gaming Device Port, MSI Audio Boost 2, MSI Guard-Pro, dobbelt hovedtelefon-forstærkere, Debug LED |
Diverse
|
Bredde |
30.5 cm |
|
Dybde |
24.4 cm |
