Garanti (måneder) |
12 |
Tilstand |
Brukt |
Status |
Testet |
Produktnummer |

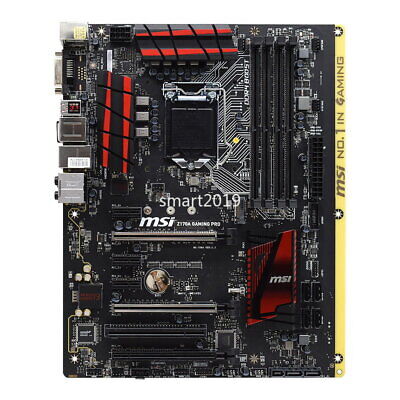

Z170A GAMING PRO |
Produkttype |
Hovedkort |
Brikkesett type |
Intel Z170 |
Prosessorsokkel |
LGA1151-1 Socket |
Kompatible prosessorer |
Pentium, Celeron, Core i5, Core i3, Core i7 |
EAN |
4719072412951 |
Støttet RAM |
Maks størrelse |
64 GB |
Teknologi |
DDR4 |
Bussklokke |
2400 MHz, 2133 MHz, 2800 MHz (O.C.), 2600 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3600 MHz (O.C.) |
Støttet RAM-integritetskontroll |
Non-ECC |
Registrert eller bufret |
Ikke-bufret |
Egenskaper |
Dobbeltkanalsminnearkitektur, Intel Extreme Memory Profiles (XMP) |
Grafikk |
Maks allokert RAM-størrelse |
64 GB |
Lyd |
Type |
HD-lyd (8-kanalers) |
Audio Codec |
Realtek ALC1150 |
Tilpassede standarder |
High Definition Audio |
LAN |
Nettverkskontroller |
Intel I219V |
Nettverksgrensesnitt |
Gigabit Ethernet |
Ekspansjon / Tilkoplinger |
Utvidelsesspor |
1 x CPU 4 x 288-pins DIMM 3 x PCIe 3.0 x16 (x16, x0, x4 or x8, x8, x4-modus) 3 x PCIe 3.0 x1 1 x PCI |
Lagergrensesnitt |
SATA-600 / PCIe 3.0 -kontakter: 6 x 7pin SATA, 1 x M.2, 1 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
RAID-funksjoner |
Intel Smart Response Technology |
Grensesnitt |
1 x LAN (Gigabit Ethernet) 2 x USB 2.0 1 x DVI-D 2 x USB 3.1 Gen 2 1 x HDMI 1 x lydutlinje - minijakk 1 x lydinnlinje - minijakk 1 x mikrofon - minijakk 1 x lydutlinje (bakre) - minijakk 1 x lydutlinje (senter/subbasshøyttaler) - minijakk 1 x PS/2-tastatur / -mus 4 x USB 3.1 Gen 1 1 x TOSLINK
|
Interne overflater |
4 x USB 2.0 - header 2 x USB 3.1 Gen 1 - header 1 x lyd - header
|
Strømkontakter |
24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt |
Egenskaper |
BIOS Type |
|
BIOS-egenskaper |
DMI-støtte, UEFI BIOS, MSI ClickBIOS 5 |
Sov/Våkne |
|
Maskinvarefunksjoner |
Intel Extreme Memory Profile (XMP)-støtte, NVIDIA 2-way SLI Technology Support, Hi-c CAP, Super Charger, Fanless Design Heatsink, AMD 3-veis CrossFireX-teknologistøtte, Easy Button 3, Clear CMOS Button, MSI Gaming Device Port, MSI Guard-Pro, Debug LED, MSI Mystic Light, MSI Steel Armor, MSI Audio Boost 3, Game Boost, MSI Military Class V, LAN Protect, Double ESD Protection, SteelSeries Certified (SSC) |
Diverse |
Bredde |
30.5 cm |
Dybde |
24.4 cm |
