MSI Z170 KRAIT GAMING, Socket-1151
Kun hovedkort!
Z170 KRAIT GAMING
- Supports 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket
- Supports DDR4-3600+(OC) Memory
- DDR4 Boost: Give your DDR4 memory a performance boost
- Turbo M.2 32Gb/s + Turbo U.2 ready + SATA Express 10 Gb/s
- GAMING LAN powered by Intel™: The best online gaming experience with lowest latency
- LAN Protect: 15KV Anti-surge protection
- Audio Boost 3: Reward your ears with studio grade sound quality
- Military Class 5: The latest evolution in high quality components featuring the brand new Titanium Chokes
- Guard-Pro: Improved Protection and Power Efficiency
GAME IN STYLE
Each game demands different skills, each gamer selects, customizes and levels their own gaming character. Why stop there? MSI Performance GAMING motherboards allow you to fully customize & personalize your gaming PC to any color you want while delivering top performance for a great gaming experience.

Unmatched memory performance and stability
With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.

Gaming optimized bandwith management
Dedicated to giving you the best online gaming experience with optimized traffic prioritization and low latency, MSI GAMING LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games.

Studio grade sound with AUDIO BOOST 3
With Audio Boost 3 we're delivering the highest sound quality through the use of premium quality audio components. That way, you can enjoy breathtaking, crystal clear sound and music through 8-channel HD Audio or high impendence headphones and truly dominate the game.

Generelt
Garanti (måneder) |
6 |
Tilstand | Brukt |
Status | Testet |
I/O Shield | Ja |
Produktnummer | Z170 KRAIT GAMING |
EAN | 4719072412975 |
Produkttype |
Hovedkort - ATX |
Brikkesett type |
Intel Z170 |
Prosessorsokkel | LGA1151 Socket |
Kompatible prosessorer | Pentium, Celeron, Core i5, Core i3, Core i7 |
Støttet RAM
Maks størrelse |
64 GB |
Teknologi |
DDR4 |
Bussklokke |
2400 MHz, 2133 MHz, 2800 MHz (O.C.), 2600 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3600 MHz (O.C.) |
Støttet RAM-integritetskontroll |
Non-ECC |
Registrert eller bufret |
Ikke-bufret |
Egenskaper |
Dobbeltkanalsminnearkitektur, Intel Extreme Memory Profiles (XMP) |
Grafikk
Maks allokert RAM-størrelse |
Lyd
Type |
HD-lyd (8-kanalers) |
Audio Codec |
Realtek ALC1150 |
Tilpassede standarder |
High Definition Audio |
LAN
Nettverkskontroller |
Intel I219V |
Nettverksgrensesnitt |
Gigabit Ethernet |
Ekspansjon / Tilkoblinger
Utvidelsesspor |
1 x CPU 4 x 288-pins DIMM 3 x PCIe 3.0 x16 (x16, x0, x4 or x8, x8, x4-modus) 3 x PCIe 3.0 x1 1 x PCI |
Lagergrensesnitt |
SATA-600 / PCIe 3.0 -kontakter: 6 x 7pin SATA, 1 x M.2, 1 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
RAID-funksjoner |
Intel Smart Response Technology |

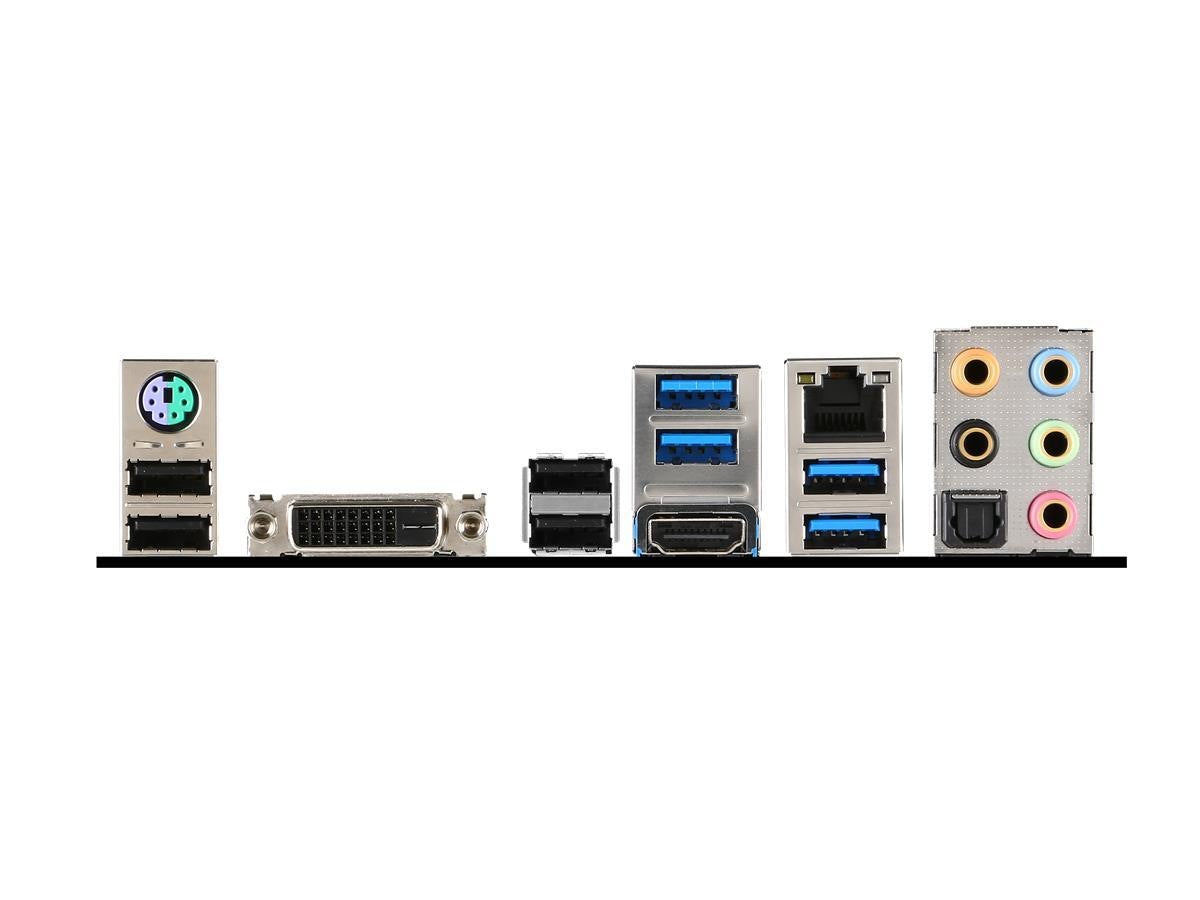

Grensesnitt |
1 x LAN (Gigabit Ethernet) 4 x USB 2.0 1 x DVI-D 4 x USB 3.1 Gen 1 1 x HDMI 1 x lydutlinje - minijakk 1 x lydinnlinje - minijakk 1 x mikrofon - minijakk 1 x lydutlinje (bakre) - minijakk 1 x lydutlinje (senter/subbasshøyttaler) - minijakk 1 x PS/2-tastatur / -mus 1 x TOSLINK |
Interne overflater |
4 x USB 2.0 - header 2 x USB 3.1 Gen 1 - header 1 x lyd - header |
Strømkontakter |
24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt |
Egenskaper
BIOS-egenskaper |
DMI-støtte, UEFI BIOS, MSI ClickBIOS 5 |
Maskinvarefunksjoner |
Intel Extreme Memory Profile (XMP)-støtte, NVIDIA 2-way SLI Technology Support, AMD 3-veis CrossFireX-teknologistøtte, MSI Gaming Device Port, MSI Guard-Pro, Debug LED, MSI Steel Armor, MSI Audio Boost 3, Game Boost, MSI Military Class V, LAN Protect, Double ESD Protection, SteelSeries Certified (SSC) |
Diverse
Bredde |
30.5 cm |
Dybde |
24.4 cm |
