| Generelt |
| Garanti (måneder) |
12 |
| Tilstand |
Brukt |
| Status |
Testet |
| Produktnummer |
NEKL-030 |
| Produkttype |
Strømforsyning - intern |
| Spesifikasjonssamsvar |
ATX12V 2.4 / EPS12V 2.92 |
| PSU-formfaktor |
ATX |
| EAN |
5999094002807 |
| Strømenhet |
| Inngangsspenning |
|
| Frekvens nødvendig |
|
| Kontakter for Hovedkort (20+4-pin) |
1 |
| Kontakter for CPU (4+4-pin) |
1 |
| Kontakter for CPU (8-pin) |
0 |
| Kontakter for PCI Express (6+2-pin) |
6 |
| Kontakter for PCI Express (6-pin) |
0 |
| Kontakter for SATA (15-pin) |
4 |
| Kontakter for Molex (4-pin) |
4 |
| Kontakter for Floppy (4-pin mini) |
0 |
| Utgangsspenning |
+3.3, +5, ±12 V |
| Effektkapasitet |
1200 watt |
| Utgangsstrøm |
+3.3V - 25 A
+5V - 25 A
+12V - 83.3 A
-12V - 0.8 A
+5VSB - 3 A
|
| Effektivitet |
|
| Modulkabelstyring |
Ja |
| 80 PLUS-sertifisering |
80 PLUS Platinum |
| Diverse |
| Medfølgende kabler |
ATX-strømkabel |
| MTBF |
|
| Kjølesystem |
140mm vifte (automatic control, semi-passive)
|
| Egenskaper |
|
| Tilpassede standarder |
|
| Størrelse og vekt |
| Bredde |
|
| Dybde |
|
| Høyde |
|
| Vekt |
|
-
Denne modellen kan dra veldig mye strøm når den først kobles til i veggen. Dersom man har mindre sikringer eller mye andre ting på samme sikring kan dette medføre at de slår ut når PSU først kobles til, men det er ikke et problem etter å ha skrudd sikringen på igjen.
Dette kan leses mer om her: https://www.techpowerup.com/review/kolink-kl-c1200pl/5.html

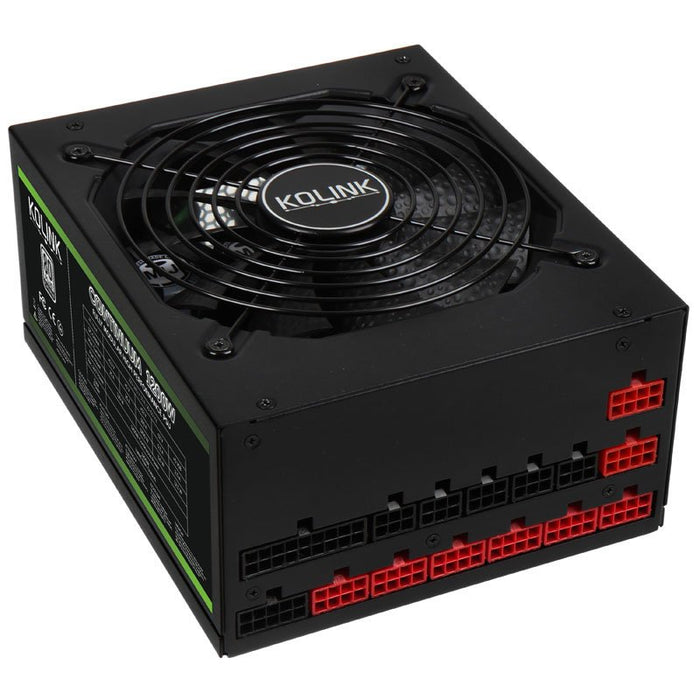

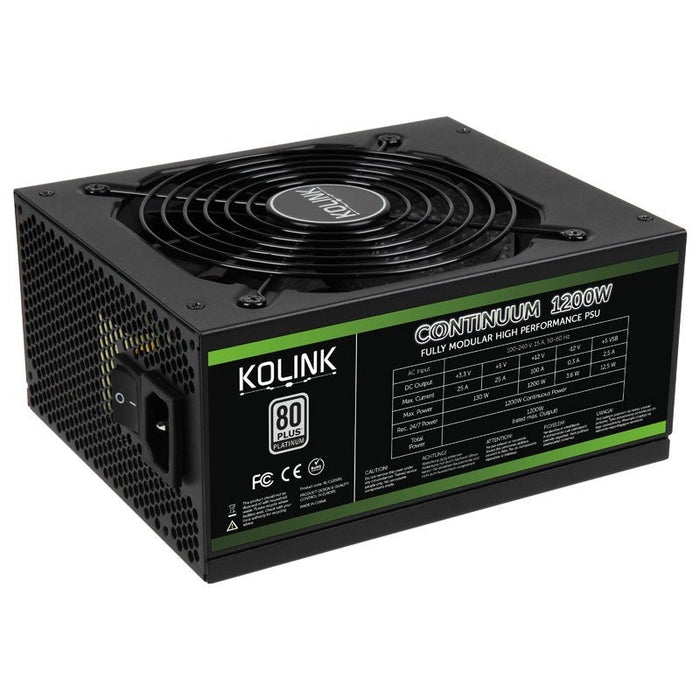

With the Continuum series, the Hungarian brand Kolink finally leaves the area of the budget PSUs and presents a top-class power supply at a fair price. Immediately Kolink would convince gamers with multiple (strong) overclocked graphics cards as well as operators of rendering platforms and workstations with quality and price-performance. With around 1,200 watts real continuous power and 80 Plus Platinum efficiency the Kolink Continuum is a force to be reckoned with.
A clear highlight of Kolink Continuum C1200PL is the gigantic amlount of connectors: In addition to the 20 + 4-pin ATX connector for the motherboard, there is a 4 + 4-pin and an 8-pin 12V EPS connector to supply two high-end processors. For the graphics cards all twelve 6 + 2-pin PCIe connectors are available in six cables. Even render setups with six high-end GPUs can be operated without an adapter-crafted solutions. The other components are supplied with eight SATA and 4-pin Molex connectors.
The Kolink Continuum 1200W comes with a silent 140mm fan with a golf-ball effect surface, employing a double ball bearing system for effiency and low noise. With 1200W of power, 80+ Platinum Certified effiency and a five year warranty as standard, the Kolink Continuum 1200W unit provides extremely reliable & efficient power at a very competitive pricepoint.
