| Garanti (måneder) |
18 |
| Tilstand |
Brukt |
| Status |
Testet |
| Produktnummer |

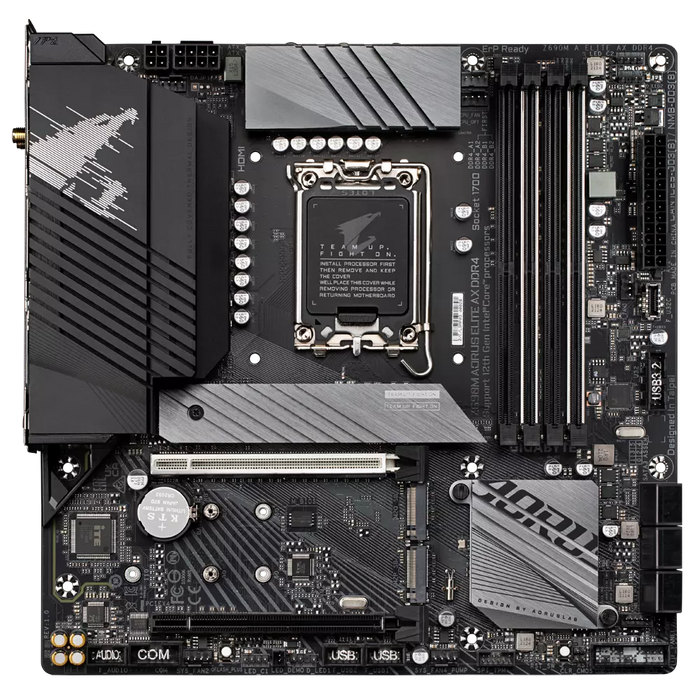

Z690M A ELITE AX DDR4 |
| Produkttype |
Hovedkort |
| Brikkesett type |
Intel Z690 |
| Prosessorsokkel |
LGA 1700 |
| Kompatible prosessorer |
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| EAN |
4719331827908 |
| Støttet RAM |
| Maks størrelse |
128 GB |
| Teknologi |
DDR4-SDRAM |
| Bussklokke |
2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| Støttet RAM-integritetskontroll |
Ikke-ECC |
| Registrert eller bufret |
Ikke-bufret |
| Egenskaper |
|
| Grafikk |
| Maks allokert RAM-størrelse |
|
| Lyd |
| Type |
|
| Audio Codec |
|
| Tilpassede standarder |
|
| LAN |
| Nettverkskontroller |
|
| Nettverksgrensesnitt |
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WIFI Module
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
|
| Ekspansjon / Tilkoplinger |
| Utvidelsesspor |
1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 5.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX4 slot conforms to PCI Express 3.0 standard.) |
| Lagergrensesnitt |
CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset. |
| RAID-funksjoner |
|

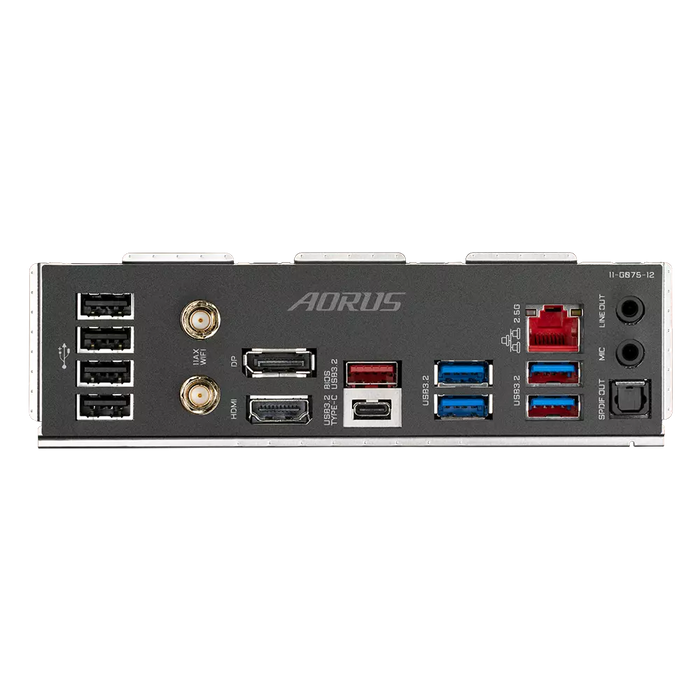

| Grensesnitt |
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks |
| Interne overflater |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper |
| Strømkontakter |
|
| Egenskaper |
| BIOS Type |
|
| BIOS-egenskaper |
|
| Sov/Våkne |
|
| Maskinvarefunksjoner |
|
| Diverse |
| Høyde |
24.4 cm |
| Bredde |
24.4 cm |
