Gigabyte X570-I AORUS PRO WIFI - AM4

Name: Gigabyte X570-I AORUS PRO WIFI - AM4
Brand: Rebuild IT
SKU: 104773
Price: 2249.0 NOK
Availability: OutOfStock

Varenummer - 104773

Utsolgt

0,- - 0,-

0,-

2.249,-

2.249,- - 2.249,-

2.249,-

Status:

Ingen på lager

Spesifikasjoner
Produktinfo

Generelt
Garanti (måneder)	18
Tilstand	Brukt
Status	Testet
Produktnummer	Gigabyte X570 Aorus Pro Wi-Fi
Produkttype	Hovedkort
Brikkesett type	AMD X570
Prosessorsokkel	AM4
Kompatible prosessorer	AMD Socket AM4, support for : Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
EAN	4719331806408
Støttet RAM
Maks størrelse	64 GB
Teknologi	DDR4
Bussklokke	5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz
Støttet RAM-integritetskontroll	Ikke-ECC
Registrert eller bufret	Ikke-bufret
Egenskaper
Grafikk
Maks allokert RAM-størrelse
Lyd
Type
Audio Codec	Realtek^® ALC1220-VB codec
Tilpassede standarder
LAN
Nettverkskontroller
Nettverksgrensesnitt	Intel® GbE LAN chip (10/100/1000 Mbit) Intel^® Wi-Fi 6 AX200 Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0
Ekspansjon / Tilkoplinger
Utvidelsesspor	Integrated in the CPU (PCIEX16): AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ Processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) AMD Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 2nd Gen Ryzen™ Processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset: 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI) Actual support may vary by AMD CPU's specification
Lagergrensesnitt	Integrated in the CPU (M2A_SOCKET): AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ Processors: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 4.0 x4/x2 SSD support) AMD Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
RAID-funksjoner

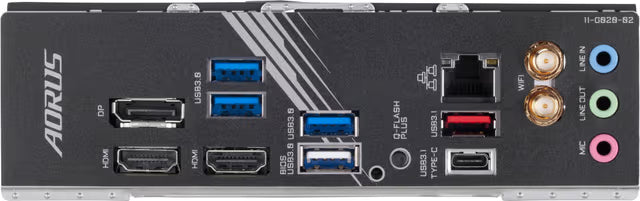

Grensesnitt	1 x DisplayPort 2 x HDMI ports 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks
Interne overflater	1 x CPU fan header 1 x system fan header 1 x addressable LED strip header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper
Strømkontakter	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Egenskaper
BIOS Type
BIOS-egenskaper
Sov/Våkne
Maskinvarefunksjoner
Diverse
Høyde	17 cm
Bredde	17 cm

Informasjon om produktet

Gigabyte X570-I AORUS PRO WIFI - AM4
