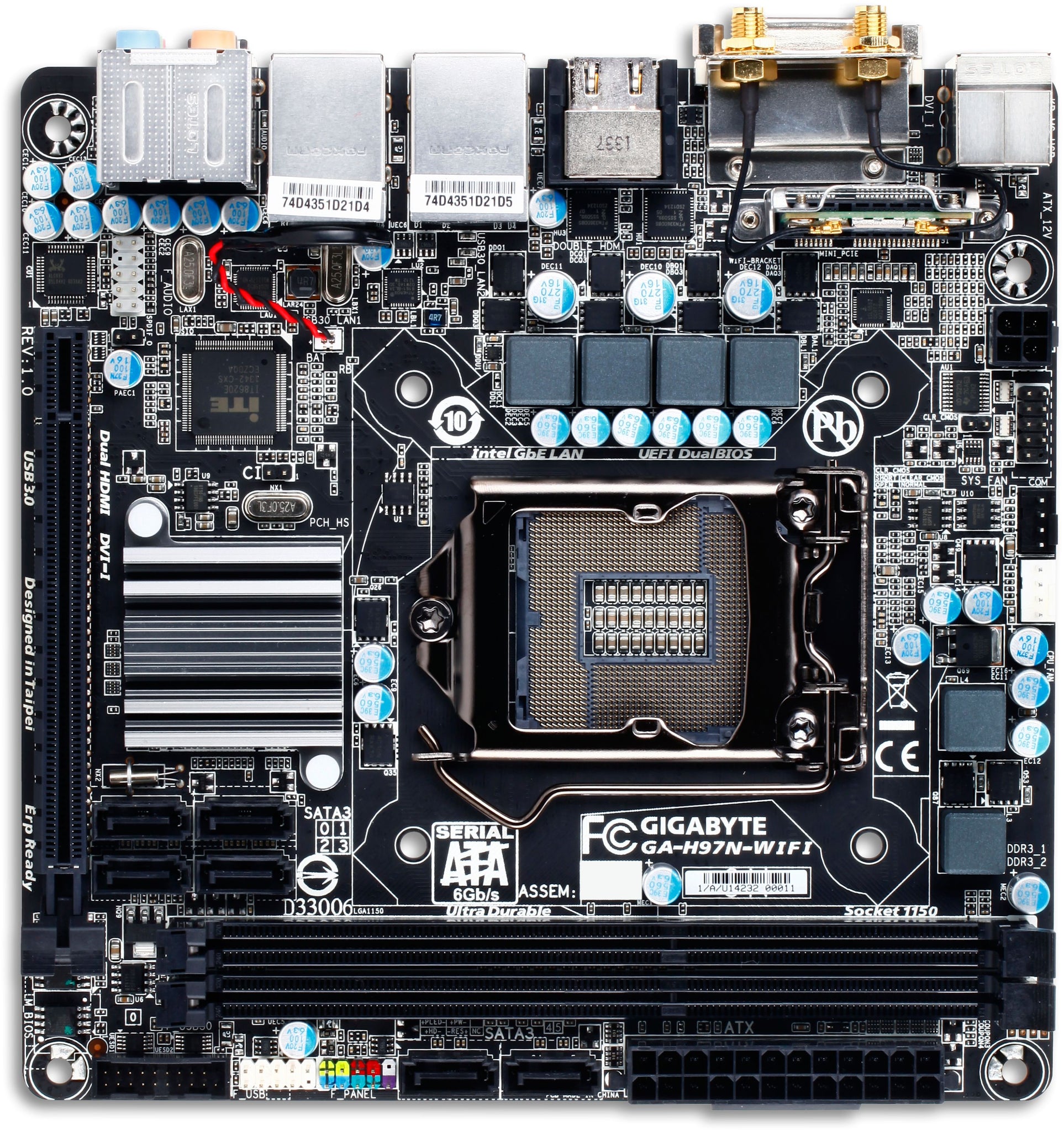

Gigabyte GA-H97N-WIFI, Socket-1150
Utsolgt
Original price
999.00 kr
-
Original price
999.00 kr
Original price
999.00 kr
999.00 kr
-
999.00 kr
Current price
999.00 kr
Status:
Ingen på lager
Produktinfo
- Supports 4th and 5th Generation Intel® Core™ processors
- Intel and Qualcomm Atheros gaming networking
- Bluetooth 4.0 + 867Mbps 11AC dual band WIFI card
- HD Audio support
- Highly efficient MOSFET design
- Long lifespan Durable Solid caps
- LAN with high ESD Protection
- GIGABYTE LAN Optimizer
- APP Center including EasyTune™ and Cloud Station™ utilities
- GIGABYTE UEFI DualBIOS™
- Intel® Small Business Advantage
GIGABYTE 9 Series Motherboards
GIGABYTE 9 Series motherboards support the latest 4th & 5th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build.
Intel ® Gigabit LAN
Intel® Gigabit LAN networking, a popular choice with gamers that features several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.
Integrated 2T2R Dual Band IEEE802.11ac WiFi + BT 4.0
This motherboard comes with an exclusive IEEE802.11ac WiFi module that supports up to 867Mbps wireless networks and Bluetooth 4.0. IEEE802.11ac WiFi runs at up to 867Mbit/s and the bundled 2.4GHz/5GHz dual-band, 2T2R antenna gives you wide coverage.
LAN Optimizer - Intelligent optimization network management tool
GIGABYTE LAN Optimizer is designed to allow the user to manage different types of network traffic so that data streams such as HD media, web browsing or online gaming can be prioritized, taking precedence over large data downloads that tend to strangle overall network bandwidth.
GIGABYTE Patented DualBIOS™ (UEFI) Design
GIGABYTE 9 series Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC’s most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a ‘Main BIOS’ and a ‘Backup BIOS’, making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
ESD Protection for USB and LAN
GIGABYTE 9 Series motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.
Humidity Protection with New Glass Fabric PCB
There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE 9 series motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions.
Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.
Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
HDMI™-The Next Generation Multimedia Interface
HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
DVI-I Support
DVI-I (Digital Visual Interface) is a video interface standard designed for carrying uncompressed digital video data (both digital and analog), and to maximize the visual quality of digital display devices, such as LCD monitors, digital projectors, and so on. In addition, the DVI interface is compatible with HDCP (High-bandwidth Digital Content Protection).
Spesifikasjoner
Generelt
|
Garanti (måneder) |
6 |
| Tilstand | Brukt |
| Status | Testet |
| I/O Shield | Ja |
| Produktnummer | GA-H97N-WIFI |
|
Produkttype |
Hovedkort - mini-ITX |
|
Brikkesett type |
Intel H97 Express |
| Prosessorsokkel | LGA1150-sokkel |
| Kompatible prosessorer | Pentium, Celeron, Core i5, Core i3, Core i7 |
| EAN | 4719331818258 |
Støttet RAM
|
Maks størrelse |
16 GB |
|
Teknologi |
DDR3 |
|
Bussklokke |
1600 MHz, 1333 MHz |
|
Støttet RAM-integritetskontroll |
Non-ECC |
|
Egenskaper |
Dobbeltkanalsminnearkitektur, Intel Extreme Memory Profiles (XMP) |
Grafikk
|
Maks allokert RAM-størrelse |
1 GB |
Lyd
|
Type |
HD-lyd (8-kanalers) |
|
Audio Codec |
Realtek ALC892 |
|
Tilpassede standarder |
High Definition Audio |
LAN
|
Nettverksgrensesnitt |
Bluetooth, 2 x Gigabit Ethernet, 802.11a/b/g/n/ac |
Ekspansjon / Tilkoblinger
|
Utvidelsesspor |
1 x CPU 2 x 240-pins DIMM 1 x PCIe 3.0 x16 1 x Mini PCIe |
|
Lagergrensesnitt |
SATA-600 -kontakter: 6 x 7-pin seriell ATA - 6 enheter - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
|
RAID-funksjoner |
Intel Smart Response Technology |
|
Grensesnitt |

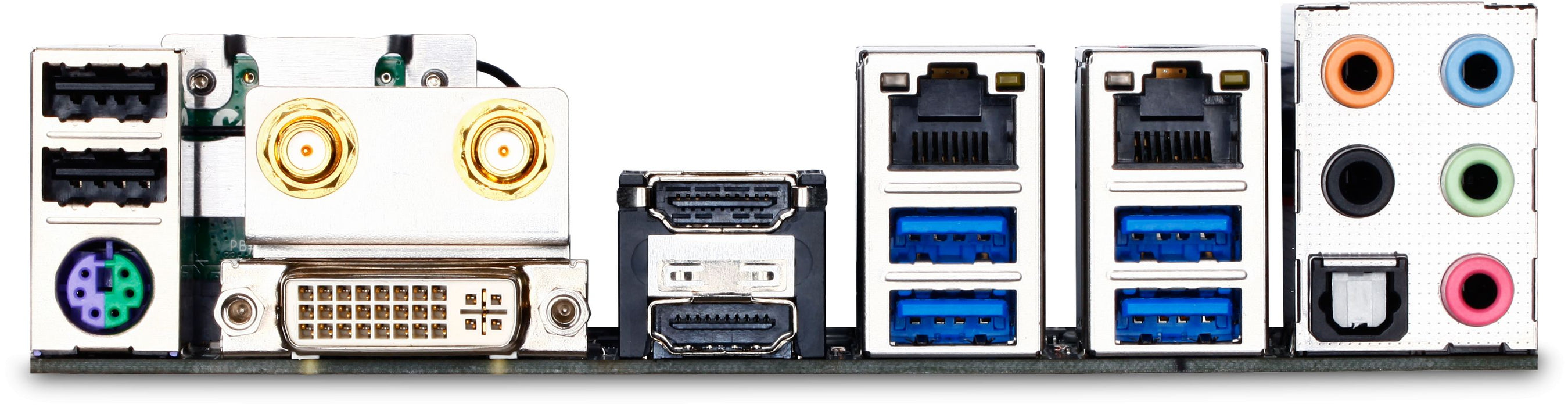

1 x TOSLINK 2 x HDMI 1 x DVI-I 4 x USB 3.0 2 x LAN (Gigabit Ethernet) 1 x lydutlinje - minijakk 1 x lydinnlinje - minijakk 1 x mikrofon - minijakk 1 x lydutlinje (bakre) - minijakk 1 x lydutlinje (senter/subbasshøyttaler) - minijakk 1 x PS/2-tastatur / -mus 2 x USB 2.0 |
|
Interne overflater |
2 x USB 2.0 - header 2 x USB 3.0 - header 1 x lyd - header 1 x SPDIF-utgang - header 1 x seriell - header |
|
Strømkontakter |
4-pin ATX12V-kontakt, 24-pin hovedstrømforsyningskontakt |
Egenskaper
|
BIOS-egenskaper |
WfM 2.0 støttet, UEFI BIOS, SMBIOS 2.7-støtte, DMI 2.7-støtte, ACPI 5.0-støtte, Dual BIOS |
|
Maskinvarefunksjoner |
Q-Flash, All-Solid Capacitor motherboard Design, Intel Extreme Memory Profile (XMP)-støtte, On/Off Charge, Intel Smart Response Technology, Ultra Durable, Intel Rapid Start Technology, Intel Smart Connect Technology, GIGABYTE LAN Optimizer, Intel Small Business Advantage-støtte, ESD Protection, Intel Wireless Display (WiDi), GIGABYTE Smart Switch |
Diverse
|
Bredde |
17 cm |
|
Dybde |
17 cm |
