| Generelt |
| Garanti (måneder) |
12 |
| Tilstand |
Brukt |
| Status |
Testet |
| Produktnummer |
CP-9020098-EU |
| Produkttype |
Strømforsyning - Intern |
| Spesifikasjonssamsvar |
ATX12V 2.3/ EPS12V |
| PSU-formfaktor |
ATX |
| EAN |
843591052870 |
| Strømenhet |
| Inngangsspenning |
AC 200-240 V |
| Frekvens nødvendig |
47 - 63 Hz |
| Kontakter for Hovedkort (20-pin) |
|
| Kontakter for Hovedkort (20+4-pin) |
1 |
| Kontakter for CPU (4-pin) |
|
| Kontakter for CPU (4+4-pin) |
1 |
| Kontakter for CPU (8-pin) |
|
| Kontakter for PCI Express (6+2-pin) |
2 |
| Kontakter for PCI Express (6-pin) |
|
| Kontakter for SATA (15-pin) |
4 |
| Kontakter for Molex (4-pin) |
4 |
| Kontakter for Floppy (4-pin mini) |
2 |
| Utgangsspenning |
+3.3, +5, ±12 V |
| Effektkapasitet |
650 watt |
| Utgangsstrøm |
+3.3V - 20 A
+5V - 20 A
+12V - 50 A
-12V - 0.3 A
+5VSB - 2.5 A
|
| Effektivitet |
85% |
| Modulkabelstyring |
Nei |
| 80 PLUS-sertifisering |
80 PLUS |
| Diverse |
| Medfølgende kabler |
ATX-strømkabel |
| MTBF |
100,000 timer |
| Kjølesystem |
120 mm-vifte |
| Egenskaper |
Muffekabler, overstrømbeskyttelse, overspenningsvern, underspenningsbeskyttelse, kortslutningsbeskyttelse, 12 V-enkeltskinne, temperaturkontrollert vifte, ikke-moduær |
| Tilpassede standarder |
FCC-klasse B-sertifisert, TUV, C-Tick, CB, CCC, cTUVus |
| Størrelse og vekt |
| Bredde |
15 cm |
| Dybde |
14 cm |
| Høyde |
8.6 cm |
| Vekt |
1.5 kg |
-

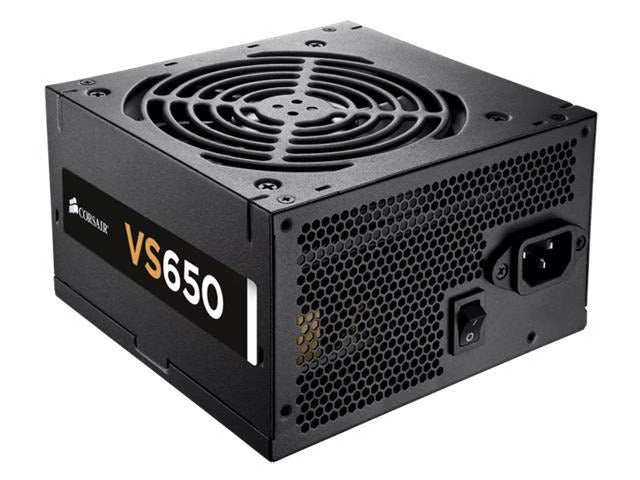

VS Series™ VS650 — 650 Watt Power Supply
VS650: the entry-level 240V power supply with high-end features
The Corsair VS650 is a great choice if you’re building a home or office system with lower power demands, but you still demand the compatibility and reliability that Corsair is known for.
Real power
The VS650 delivers a guaranteed 650 Watts of continuous power. With 0.99 Active Power Factor Correction, you get the peace of mind from knowing that your components are protected from uneven power delivery. And, a dedicated single +12V rail saves you from the hassle of balancing your components across multiple power cables.
Low noise, high efficiency
The 120mm fan is thermally controlled, so it only spins at maximum speed when it’s pushed hard – and even at full load, it’s pretty quiet. Smart design features like this are why VS650 offers up to 85% efficiency. Your PC system will generate less heat, and you’ll enjoy lower energy bills.
Sophisticated design
The black powder-coated enclosure and the black-sleeved cables give any system a polished look. You’re building a PC, not a battleship, and with the VS650 you can avoid that look of unpainted steel that you’ll find on so many entry-level power supplies.
Reliability you can count on
VS650 is backed with a three-year warranty, and you get lifetime access to Corsair’s legendary technical support and customer service.
