Corsair Carbide 500R Midi Tower Sort
Produktinfo
Kun kabinett!

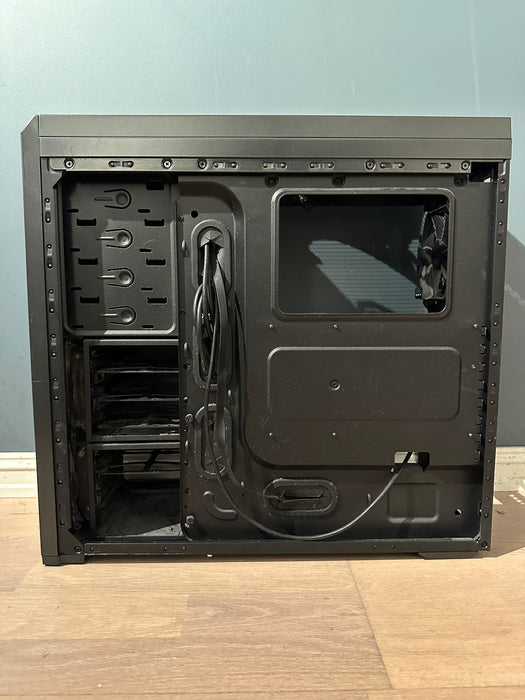

MERK: Kabinettet er brukt og kan ha slitasjemerker etter vanlig bruk, se bilder i annonsen.
Kabinettet kan også ha mangler internt i form av HDD-tray, skruer o.l. Vennligst ta kontakt ved spesielle behov.
The Corsair Carbide Series: Everything You Need, Nothing You Don't.
Carbide Series 400R: Upgrade how you want, when you want.
The 400R has been carefully designed to provide a generous amount of internal volume, and it puts that volume to good use. There’s room for eight PCI-E cards of up to 316mm in length, and even room for a full 240mm radiator for compatibility with the Hydro Series H100 Liquid CPU Cooler and modular watercooling systems. Superior airflow is a requirement for high-performance components that will be regularly pushed to their limits, so the 400R has ten fan mounting points for cooling flexibility. Three 120mm fans — two in the front, and one in the rear — are included, so you’re ready to start building right out of the box.
Carbide 500R: Serious airflow never looked this good.

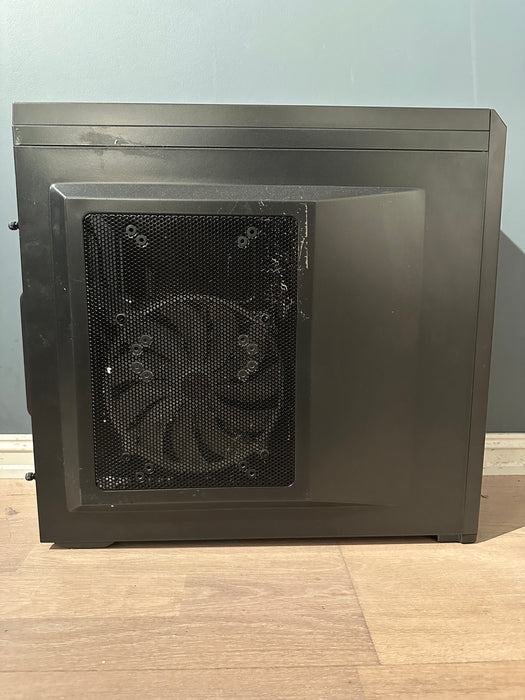

Want even more outrageous cooling flexibility? Step up to the 500R. It adds a 200mm fan mounted on the side panel’s mesh screen for extra GPU cooling, a multi-channel fan controller, and removable and relocateable hard drive cages. The ability to move and remove hard drive cages not only improves airflow — it also allows you to install graphics cards of up to 452mm in length.
The Corsair Carbide Series: Built for Builders.
The Carbide Series shares vital DNA with the award-winning Corsair Obsidian and Graphite Series. They’re acclaimed for their ease of use and performance-oriented engineering, and this philosophy is abundant in the design of the Carbide Series.
Future-Ready.
Support for USB 3.0 and 2.5” SSDs is built-in. Two USB 3.0 connectors are provided on the front panel and connect directly to motherboards with compatible USB 3.0 headers. Integrated SSD support lets you install 2.5” solid-state drives in any of the hard drive bays, without having to deal with adapters.
Easy access.
Thumb screws on the side panels and tool-free drive installation mean that you’ll spend less quality time with your screwdriver, and the integrated dust filters can be quickly removed for easy maintenance.
Looking good, inside and out.

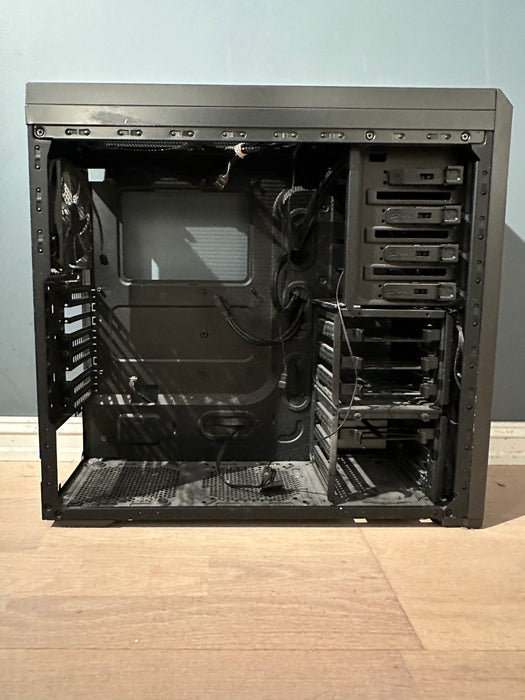

The beauty on the inside goes beyond the black-painted interior. Corsair’s innovative cable management system provides a straightforward way to route cables behind the motherboard, not across it where it can interfere with airflow and give your system a cluttered look. And since looks are an important part of any build, you’ll appreciate the ability to turn the front panel fan white LEDs on or off with the push of a button.
Contents and Specifications
Package contents
- PC Case (400R or 500R)
- Quick Start Guide
- Installation kit
Technical Specifications
Carbide Series:
- Side panel with mesh fan mount locations
- Four 5.25” drive bays
- Six 3.5” hard drive bays with 2.5” compatibility
- Eight expansion slots
- Supports most 240mm dual radiators (15mm spacing)
- Two-year warranty

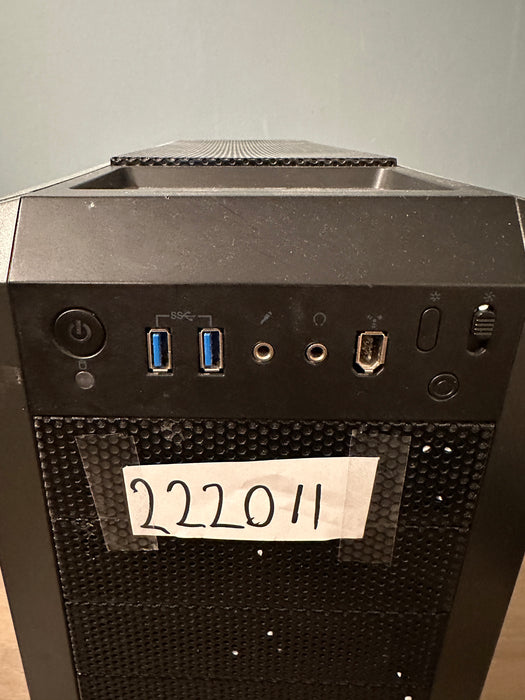

- Front I/O panel contains:
- Two USB 3.0 connectors
- One Firewire connector
- 3.5” headphone and microphone connector
- Power and reset switches
- Lighting toggle switch (lighting kit not included)
Compatibility
- Intel LGA 775, 1155, 1156, 1366, and 2011
- AMD sockets AM2 and AM3
- Hydro Series H80 requires a case with a rear or top 120mm fan mount
- Hydro Series H100 requires a case with dual 120mm fan mounts with 15mm spacing for a 240mm radiator
Spesifikasjoner
Generelt
Garanti (måneder) |
6 |
Tilstand | Brukt |
Status | Testet |
Produktnummer | CC-9011012-WW |
Produktformfaktor | Tower |
Maks hovedkortsstørrelse |
Utvidet ATX (E-ATX)
|
Støttede hovedkort |
ATX, microATX, Mini-ITX, Extended ATX |
Antall interne brønner | 6 |
Antall fronttilgjengelige brønner | 4 |
Farge | Svart |
Kjølesystem |
120/140 mm viftemontering x 6 120 mm viftemontering x 1 Foran: 120 mm vifte x 2 Bak: 120 mm vifte x 1 Side: 200 mm vifte x 1 |
Maks. CPU-kjølerhøyde | 180 mm |
Maks. videokortlengde | 452 mm |
Maks. strømforsyningslengde | 300 mm |
Egenskaper | Skrueløse stasjonsbrønner, avtakbart støvfilter, kabelstyringshull |
EAN | 843591013710 |
Ekspansjon / Tilkoblinger
Ekspansjonsbrønner |
4 (total) / 4 (ledig) x tilgang fra forsiden - 5.25" 6 (total) / 6 (ledig) x intern - 2,5" / 3,5" delt |
Utvidelsesspor |
8 |
Grensesnitt |
2 x USB 3.0 1 x FireWire - 6-pins FireWire 1 x hodetelefoner - minijakk 1 x mikrofon - minijakk |
Størrelser og vekt
Bredde |
20.6 cm |
Dybde |
50.8 cm |
Høyde |
52.1 cm |
Vekt |
7.53 kg |
