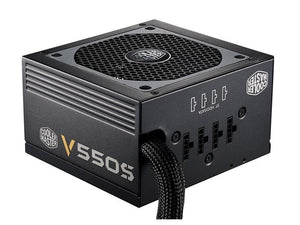

Cooler Master V550S, 550W PSU
Produktinfo
Cooler Master V550S PSU Japanese capacitor ensures an extended lifetime and excellent holdup times, in case of power fluctuation.
Unique 3D circuit design offers high efficiency and improves the heat dissipation!
Introduction:
Cooler Master VS series power units are 80Plus Gold certified, designed for PC gamers and performance enthusiasts. Thanks to Cooler Master exclusive 3D circuit design it offers high efficiency, low crosstalk, and improves the heat dissipation.
The modular cable system design with flat-ribbon cables makes cable management a breeze and results in a clean and tidy build. It uses the high grade Japanese capacitor which ensures and extended lifetime and excellent holdup times, in case of power fluctuation.
Features:
Incredible Efficiency.
Up to 92% efficiency @ typical load, the Cooler Master VS Series power supply runs quieter with silent 135 mm FDB fan and generates minimal excess heat. 80 Plus® Gold certification with 100% high quality Japanese capacitor , your guarantee that you're making the right choice for smart, efficient PSU.
- Unique 3D circuit design offers high efficiency and improves the heat dissipation. It reduces the unnecessary cables which results in much lower crosstalk, signal noise and improves airflow
- Powerful Single +12V rail for superior load balancing and VGA compatibility
- Modular cable designs for better cable management
- Japanese capacitor ensures an extended lifetime and excellent holdup times, in case of power fluctuation
- Custom DC-DC module design offers higher efficiency and voltage stability
- 80 PLUS Gold certified: up to 92% efficiency @ typical load
Product Overview:
Specifications:
Spesifikasjoner
Generelt
|
Garanti (måneder) |
6 |
| Tilstand | Brukt |
| Status | Testet |
| Produktnummer | RS550-AMAA-G1 |
|
Enhetstype |
|
|
Spesifikasjonssamsvar |
ATX12V 2.31 |
|
PSU-formfaktor |
ATX |
| EAN | 4719512044483 |
Strømenhet
|
Inngangsspenning |
AC 90-264 V |
|
Frekvens nødvendig |
47 - 63 Hz |
| Strømtilkobling for CPU (4+4-pin) | 1 |
|
Strømtilkobling for Floppy (4-pin mini) |
1 |
| Strømtilkobling for Molex (4-pin) | 3 |
| Strømtilkobling for hovedkort (20-4-pin) | 1 |
| Strømtilkobling for PCI Express (6+2-pin) | 2 |
| Strømtilkobling for SATA (15-pin) | 6 |
|
Utgangsspenning |
+3.3, +5, ±12 V |
|
Effektkapasitet |
550 Watt |
|
Utgangsstrøm |
+3.3V - 20 A +5V - 20 A +12V - 45 A -12V - 0.3 A +5VSB - 2.5 A |
| Effektivitet | 92% |
|
Modulkabelstyring |
Ja |
|
80 PLUS-sertifisering |
80 PLUS Gold |
Diverse
|
MTBF |
100,000 timmar |
|
Egenskaper |
Överhettningsskydd, överspänningsskydd, överspänningsskydd, överströmskydd, underspänningsskydd, enkel 12 V-skena, DC-DC-teknik |
|
Tilpassede standarder |
UL, TUV, BSMI, CCC, FCC, KCC, EAC |
Størrelse og vekt
|
Bredde |
15 cm |
|
Dybde |
14 cm |
|
Høyde |
8.6 cm |
