Cooler Master CM 690 II Advanced nVidia Edition
Produktinfo
Kun kabinett!
MERK: Kabinettet er brukt og kan ha slitasjemerker etter vanlig bruk.
Kabinettet kan også ha mangler internt i form av HDD-tray, skruer o.l. Vennligst ta kontakt ved spesielle behov.
Cooler Master CM 690 II Advanced NVIDIA Edition (Windowed version)
Comes with a NVIDIA logo side panel, clean looking external and internal accents.
Take advantage of excellent airflow and water cooling options to vastly reduce temperatures on system components!
Equipped with two USB 3.0 internal connectors for faster data transfer.
Introduction:
CM 690 II Advanced NVIDIA Certified Edition (USB 3.0 version) comes with a NVIDIA logo side panel, clean looking external and internal accents. It makes it possible to take advantage of excellent airflow and water cooling options to vastly reduce temperatures on system components.
The CPU mounting hole size has been enlarged to make installing CPU heatsink even more convenient, and the rubber grommets have been redesigned for improved cable management. Additionally, the CM 690 II Advanced NVIDIA Edition (USB 3.0) is equipped with two USB 3.0 internal connectors for faster.
Features:
- Dual USB 3.0 Support
- Enlarged front and top mesh design for superb ventilation
- Can accommodate an internal 120 x 240 mm radiator at the top and bottom
- Dust-control filters for all meshed areas
- Supports up to 10 fans (up to 5x140mm fans)
- Front panel green LED fan on/off switch
- Rear tubing holes for liquid cooling
- Includes 1.8" & 2.5" HDD and SSD adapters
- More and redesigned rubber grommets for improved cable management
- Larger CPU heatsink cut-out on the mainboard tray

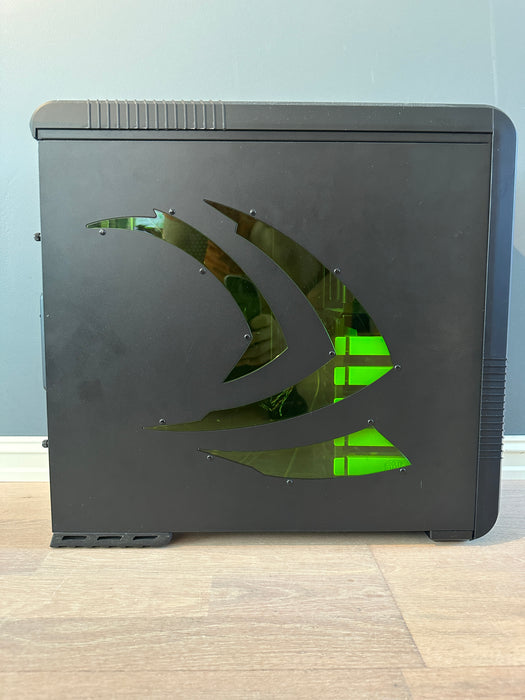

- Stylish side panel window with NVIDIA logo cut-out
The wildly popular and top-selling CM 690 II Advanced now comes in a NVIDIA Certified Edition. It has been stylized with a NVIDIA themed side panel, badging, and clean looking external and internal accents. This spacious mid-tower has room for up to 3 graphics cards, high-end CPU coolers, top or bottom mount liquid cooling radiators and a 1.8"/2.5" drive adapter.
It also features a much improved airflow with oversized mesh and plenty of space for up to 9 fans. Maintenance is a breeze with tool-free drive bays, elegantly simple cable management, and a large CPU cooler retention hole.
Cooling:
Specifications:
- Front: 1x 140mm Green LED fan, 1200 RPM, 19 dBA (installed)
- Top: 1x 140mm fan, 1200 RPM, 19 dBA (installed) or 2x 120/140mm fan (optional)
- Rear: 1x 120mm fan, 1200 RPM (installed)
- Side:1x 80mm fan (optional)
- Bottom: 2x 120mm fan (optional)
- HDD cage: 1x 120mm fan (optional)
- VGA Card length: 304mm
- CPU cooler height: 177mm
Water cooling compatibility:
- Top: 120/140/240mm radiator x 1 (optional)
- Rear: 120mm radiator x 1 (optional)
- Mini-ITX
- micro-ATX
- ATX

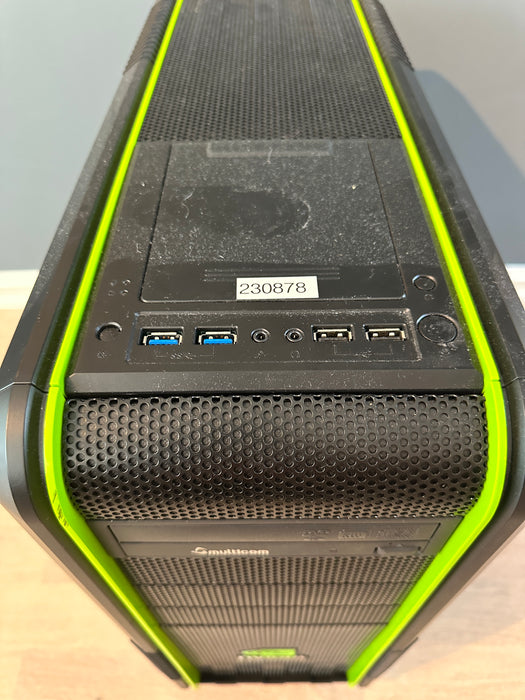

I/O Panel:
- USB 3.0 x 2
- USB 2.0 x 2
- Audio In & Out
Spesifikasjoner
Generelt
|
Garanti (måneder) |
6 |
| Tilstand | Brukt |
| Status | Testet |
| Produktnummer | NV-692A-KWN5 |
| Produktformfaktor | Tower |
|
Maks hovedkortsstørrelse |
ATX
|
|
Støttede hovedkort |
ATX, microATX, Mini-ATX |
| Spesifikasjonssamsvar | ATX12V / EPS12V / PS/2 |
| Antall interne brønner | 6 |
| Antall fronttilgjengelige brønner | 4 |
| Farge | Svart, NV-grønn |
| Kjølesystem |
Foran: 140 x 140 x 25 mm vifte x 1 / 1200 rpm / 19 dBA / grønn LED Bak: 120 mm viftemontering Topp: 140 x 140 x 25 mm vifte x 1 / 1200 rpm / 19 dBA Bunn: 120 mm viftemontering x 2 Side: 80 x 80 x 15 mm viftemontering x 1 Side: 120/140 mm viftemontering x 2 Intern: 120 mm viftemontering x 1 |
| Maks. CPU-kjølerhøyde | |
| Maks. videokortlengde | |
| Maks. strømforsyningslengde | |
| Egenskaper | Sidepanel med vindu, maskefrontpanel, kabelstyringshull, kjølevannhull |
| EAN | 4719512034583 |
Ekspansjon / Tilkoblinger
|
Ekspansjonsbrønner |
4 (total) / 4 (ledig) x tilgang fra forsiden - 5.25" x 1/2H 6 (total) / 6 (ledig) x intern - 3.5" x 1/3H |
|
Utvidelsesspor |
8 x Utvidelsesspor |
|
Grensesnitt |
2 x USB 2.0 1 x eSATA 1 x audioutgang - minijakk 1 x mikrofon - minijakk 2 x USB 3.0 |
Størrelser og vekt
|
Bredde |
21.5 cm |
|
Dybde |
52.9 cm |
|
Høyde |
49.6 cm |
|
Vekt |
9.6 kg |
