ASUS Z170-PRO, Socket-1151

  • 799,00 kr

Bare 0 igjen!

Kun hovedkort!



ASUS Z170-PRO, motherboard

One click for superb performance, with Intel® USB 3.1 Controller

  • 5-Way Optimization: One click to optimize your entire system; plus a dedicated onboard water-pump header
  • Intel® USB 3.1 on board: One Type-A port plus a reversible Type-C port
  • ASUS Pro Clock Technology: Extends base clocks and improves stability for extreme overclocking
  • Crystal Sound 3, Intel LAN and Turbo LAN: Flawless audio and low-latency networking
  • 5X Protection II: Advanced hardware safeguards

One click overclock and cooling, done!

5-Way Optimization at your disposal it takes just one click to tune complex settings — for instant, highly-controllable performance boosts! Our exclusive technology dynamically optimizes essential aspects of your system based on real-time use, so you get superb CPU performance, everyday energy savings, ultra-stable digital power, cool and quiet fans and even networking and audio settings that are tailored for the apps that you are using. In short, 5-Way Optimization ensures that your PC is perfect for gaming, entertainment, productivity or just about anything else!

  • Games run swiftly and smoothly with high performance, prioritized bandwidth and vivid sound.
  • Fans stay whisper-quiet for everyday computing, and ensure extreme cooling efficiency when gaming.
  • Stutter is eliminated for smooth-running apps, even under heavy loading.
  • Energy waste is reduced so you'll save money.

CPU performance boost (TPU)

Unleash your PC's full performance with a simple two-phase onboard switch or the ASUS AI Suite 3 utility! The TurboV Processing Unit (TPU) offers precise voltage control and advanced monitoring for the CPU and the graphics card, enabling great freedom to adjust CPU frequencies and ratios for optimized performance and to exploit the potential out of your graphics card*.

OC Design- ASUS PRO Clock technology

A dedicated base-clock (BCLK) generator designed for 6th-generation Intel® processors that allows overclocked base clock frequencies up to or beyond 400MHz*. This custom solution works in tandem with the ASUS TurboV Processing Unit (TPU), to enhance voltage and base-clock overclocking control — providing an exciting new way to boost performance to extreme heights.

Advantages of ASUS Pro Clock

  • Reduced boot up time
  • Lower jitter under extreme conditions for higher overclocks
  • Increased stability under heavy overclocking

DDR4 overclocking strength in numbers

Second-generation ASUS T-Topology enables DDR4 memory overclocking to reach new heights: over DDR4-3866MHz with all memory slots populated. Featuring a customized trace layout for reduced crosstalk and coupling noise, our second-generation T-Topology ensures time-aligned signal transfer for improved memory stability and compatibility.


Native M.2/NVMe PCIe RAID support for lightning fast storage speeds!

Not satisfied with single storage device read/write speeds? Then join the fast lane and build a RAID 0 array using two PCIe storage drives to enjoy data transfers at lightning speed!


Fast storage speed with SATA Express

Current SSDs devour up to 550MB/s bandwidth, which is close to saturation point for SATA 6Gbit/s connections. Backwardly compatible with up to two SATA drives, SATA Express is the next-generation connectivity standard — and ensures that you and your system won't get left behind.


Speed up with onboard M.2 up to 32Gbit/s

With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbit/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.

Generelt

Garanti (måneder)

6

Tilstand (Brukt/Ny*) Brukt
Status (Testet/Utestet) Testet
I/O Shield Nei
Produktnummer  Z170-PRO

Produkttype

Hovedkort - ATX

Brikkesett type

 Intel Z170

Prosessorsokkel LGA1151 Socket
Kompatible prosessorer Pentium, Celeron, Core i5, Core i3, Core i7

Støttet RAM

Maks størrelse

64 GB

Teknologi

DDR4

Bussklokke

2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2400 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.)

Støttet RAM-integritetskontroll

Non-ECC

Registrert eller bufret

Ikke-bufret

Egenskaper

Dobbeltkanalsminnearkitektur, Intel Extreme Memory Profiles (XMP)

Grafikk

Maks allokert RAM-størrelse

512 MB

Lyd

Type

HD-lyd (8-kanalers)

Audio Codec

Realtek ALC1150

Tilpassede standarder

DTS Connect, High Definition Audio, DTS Studio Sound

LAN

Nettverkskontroller

Intel I219V

Nettverksgrensesnitt

Gigabit Ethernet

Ekspansjon / Tilkoblinger

Utvidelsesspor

1 x CPU
4 x 288-pins DIMM
2 x PCIe 3.0 x16 (dobbelt x8-modus; enkeltkort: x16-modus)
1 x PCIe 3.0 x16 (x4-modus)
4 x PCIe 2.0 x1

Lagergrensesnitt

SATA-600 / PCIe 3.0 -kontakter: 6 x 7pin SATA, 1 x M.2, 1 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5

RAID-funksjoner

Intel Smart Response Technology

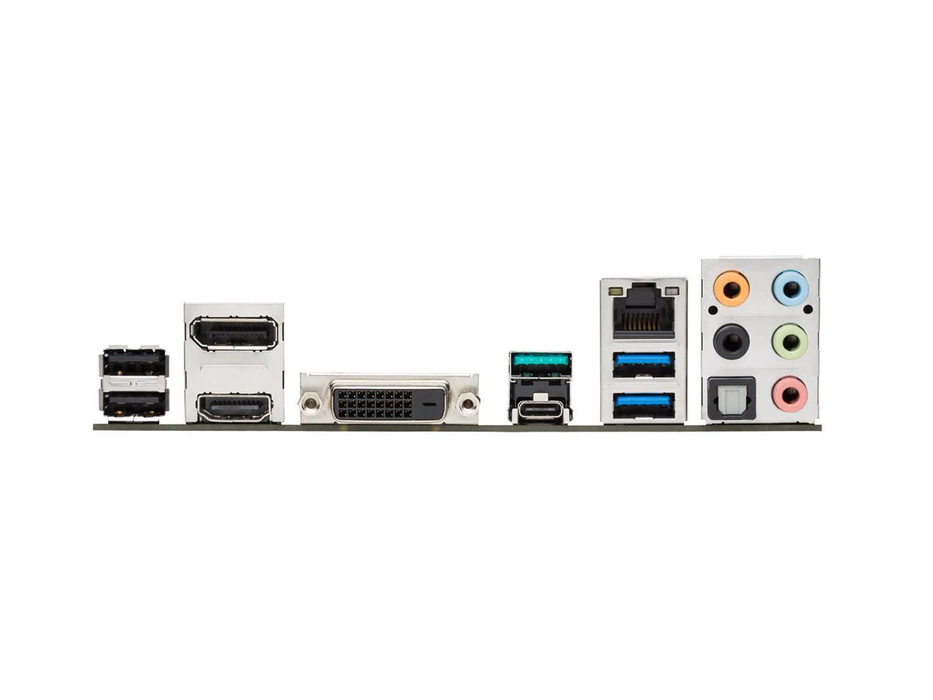

Grensesnitt

1 x HDMI
1 x DisplayPort
1 x DVI-D
1 x LAN (Gigabit Ethernet)
1 x USB 3.1
1 x USB-C
2 x USB 3.0
2 x USB 2.0
1 x lydinnlinje - minijakk
1 x lydutlinje - minijakk
1 x mikrofon - minijakk
1 x lydutlinje (senter/subbasshøyttaler) - minijakk
1 x lydutlinje (bakre) - minijakk
1 x TOSLINK

Interne overflater

4 x USB 2.0 - header
4 x USB 3.0 - header
1 x lyd - header
1 x SPDIF-utgang - header
1 x Thunderbolt - header

Strømkontakter

24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt

Egenskaper

BIOS-egenskaper

WfM 2.0 støttet, flerispråklig BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ACPI 5.0-støtte, ASUS EZ Flash 3, DMI 3,0 støttet, SMBIOS 3,0 støtte

Maskinvarefunksjoner

 C.P.R. (CPU-parameterminne), jakk-retasking, ASUS Anti-Surge Protection, MemOK!, ASUS Q-Design, Q-DIMM, GPU Boost, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, lydjakkpåvisningsteknologi, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, ASUS Precision Tweaker 2, NVIDIA Quad SLI Technology Support, ASUS 8 Phase Power Design, NVIDIA 2-way SLI Technology Support, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Intel Clear Video HD Technology, Fanless Design Heatsink, AMD Quad CrossFireX-teknologistøtte, AMD 3-veis CrossFireX-teknologistøtte, ASUS DIGI+ Power Control, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ASUS Remote GO!, DirectKey, Disk Unlocker, ASUS Enhanced DRAM Overcurrent Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Clear CMOS Button, ASUS Stainless Steel Back I/O, ASUS O.C. Tuner, anti-pop-funksjon, Turbo LAN, ASUS Fan Xpert 3, Dual Intelligent Processors 5, LANGuard, Memory O.C. Design, USB 3.1 Boost, ASUS Overvoltage Protection, ASUS Crystal Sound 3, ASUS PRO Clock Technology, ASUS 5X Protection II

Diverse

Bredde

30.5 cm

Dybde

24.4 cm
