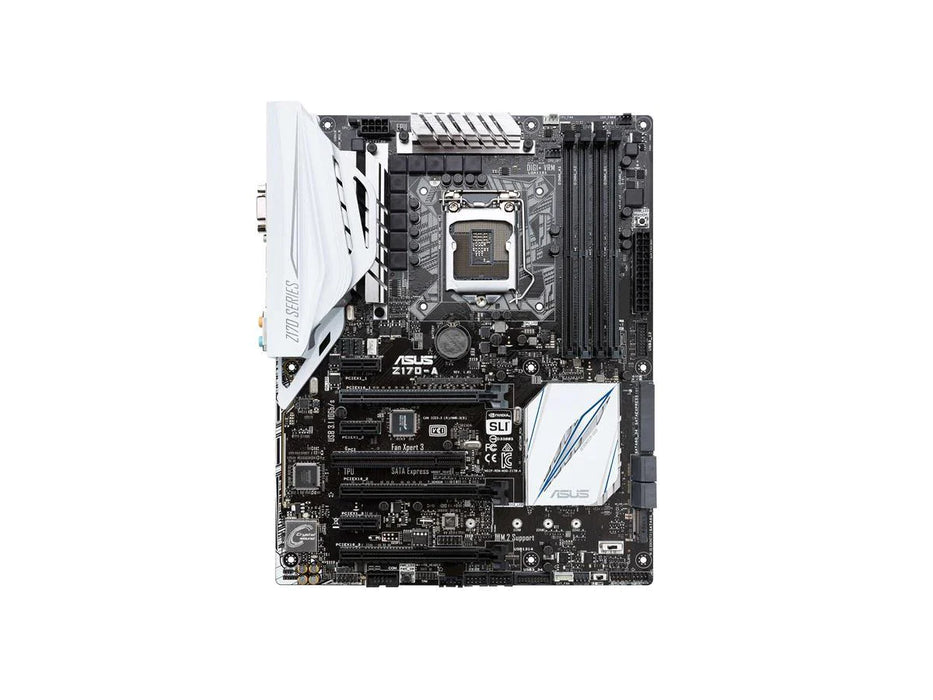

ASUS Z170-A, Socket-1151

Original price 999.00 kr - Original price 999.00 kr
Original price
999.00 kr
999.00 kr - 999.00 kr
Current price 999.00 kr
Lagerstatus:
Utsolgt
Lagerstatus:
Utsolgt
Lagerstatus:
1 på lager
  • Spesifikasjoner
  • Produktinfo
  • Generelt
    Garanti (måneder) 12
    Tilstand Brukt
    Status Testet
    Produktnummer Z170-A
    Produkttype Hovedkort - ATX
    Brikkesett type Intel Z170
    Prosessorsokkel LGA1151-1 Socket
    Kompatible prosessorer Pentium, Celeron, Core i5, Core i3, Core i7
    EAN 4712900113839
    Støttet RAM
    Maks størrelse 64 GB
    Teknologi DDR4
    Bussklokke 2800 MHz (O.C.), 2933 MHz (O.C.), 2666 MHz (O.C.), 2600 MHz (O.C.), 2400 MHz (O.C.), 2133 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.)
    Støttet RAM-integritetskontroll Ikke-ECC
    Registrert eller bufret Ikke-bufret
    Egenskaper Dobbeltkanalsminnearkitektur, Intel Extreme Memory Profiles (XMP)
    Grafikk
    Maks allokert RAM-størrelse 512 MB
    Lyd
    Type HD-lyd (8-kanalers)
    Audio Codec Realtek ALC892
    Tilpassede standarder DTS Connect, DTS Studio Sound
    LAN
    Nettverkskontroller Intel I219V
    Nettverksgrensesnitt Gigabit Ethernet
    Ekspansjon / Tilkoplinger
    Utvidelsesspor 1 x CPU
    4 x 288-pins DIMM
    2 x PCIe 3.0 x16 (dobbelt x8-modus; enkeltkort: x16-modus)
    1 x PCIe 3.0 x16 (x4-modus)
    3 x PCIe 3.0 x1
    1 x PCI
    Lagergrensesnitt SATA-600 / PCIe 3.0 -kontakter: 6 x 7pin SATA, 1 x M.2, 1 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5
    RAID-funksjoner Intel Smart Response Technology

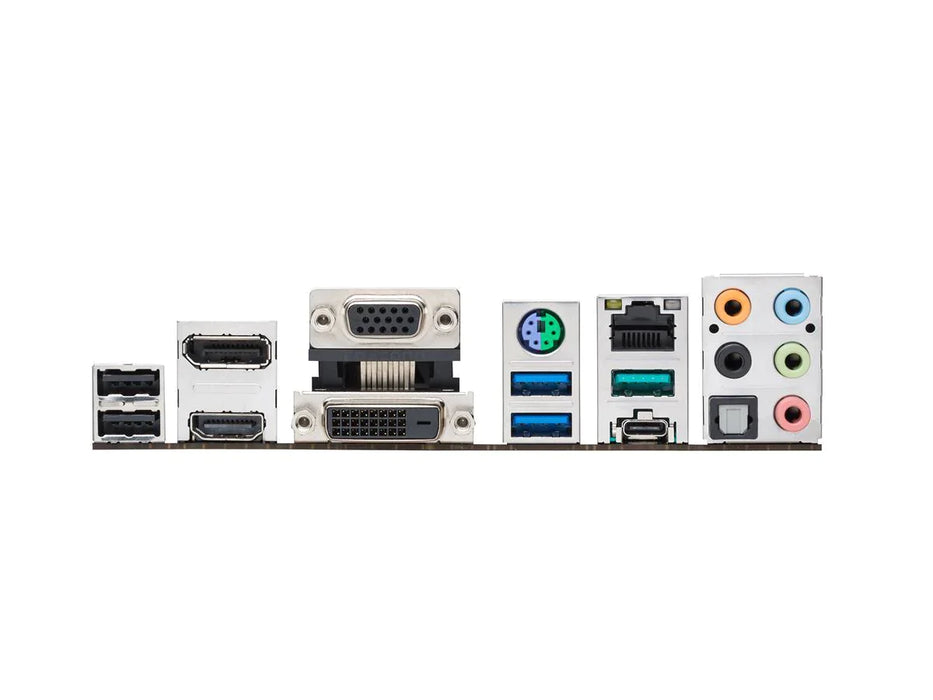

    Grensesnitt 1 x DisplayPort
    1 x HDMI
    1 x DVI-D
    1 x VGA
    1 x USB 3.1
    2 x USB 3.0
    1 x PS/2-tastatur / -mus
    1 x LAN (Gigabit Ethernet)
    2 x USB 2.0
    1 x USB-C
    1 x lydutlinje (senter/subbasshøyttaler) - minijakk
    1 x lydutlinje (front-surround) - minijakk
    1 x lydinnlinje - minijakk
    1 x TOSLINK
    1 x mikrofon - minijakk
    1 x lydutlinje - minijakk
    Interne overflater 4 x USB 2.0 - header
    4 x USB 3.0 - header
    1 x Thunderbolt - header
    1 x lyd - header
    Strømkontakter 24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt
    Egenskaper
    BIOS Type
    BIOS-egenskaper WfM 2.0 støttet, flerispråklig BIOS, ASUS Quiet Thermal Solution, USB BIOS Flashback, UEFI BIOS, ACPI 5.0-støtte, ASUS EZ Flash 3, DMI 3,0 støttet, SMBIOS 3,0 støtte
    Sov/Våkne
    Maskinvarefunksjoner C.P.R. (CPU-parameterminne), jakk-retasking, ASUS Anti-Surge Protection, ASUS Q-Design, ESD Guards, Q-DIMM, GPU Boost, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, lydjakkpåvisningsteknologi, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, Intel Extreme Memory Profile (XMP)-støtte, NVIDIA Quad SLI Technology Support, ASUS 8 Phase Power Design, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Intel Clear Video HD Technology, Fanless Design Heatsink, AMD Quad CrossFireX-teknologistøtte, ASUS DIGI+ Power Control, Onboard Button, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ASUS Remote GO!, Disk Unlocker, ASUS Enhanced DRAM Overcurrent Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Clear CMOS Button, ASUS Stainless Steel Back I/O, ASUS O.C. Tuner, anti-pop-funksjon, Turbo LAN, ASUS Fan Xpert 3, Dual Intelligent Processors 5, LANGuard, Memory O.C. Design, USB 3.1 Boost, ASUS Crystal Sound 3, ASUS PRO Clock Technology, ASUS 5X Protection II
    Diverse
    Bredde 30.5 cm
    Dybde 24.4 cm
  • Z170-A

    One click for superb performance, with USB 3.1 support

    • 5-Way Optimization: One click to optimize your entire system; plus a dedicated onboard water-pump header
    • ASUS Pro Clock Technology: Extends base clocks and improves stability for extreme overclocking
    • Crystal Sound 3, Intel LAN and Turbo LAN: Flawless audio and low-latency networking
    • USB 3.1 onboard: One Type-A port plus a reversible Type-C port
    • 5X Protection II: Advanced hardware safeguards

    One click overclock and cooling, done!

    5-Way Optimization at your disposal it takes just one click to tune complex settings — for instant, highly-controllable performance boosts! Our exclusive technology dynamically optimizes essential aspects of your system based on real-time use, so you get superb CPU performance, everyday energy savings, ultra-stable digital power, cool and quiet fans and even networking and audio settings that are tailored for the apps that you are using. In short, 5-Way Optimization ensures that your PC is perfect for gaming, entertainment, productivity or just about anything else!
    Fullwidth media container description

    DDR4 overclocking strength in numbers

    Second-generation ASUS T-Topology enables DDR4 memory overclocking to reach new heights: over DDR4-3400MHz with all memory slots populated. Featuring a customized trace layout for reduced crosstalk and coupling noise, our second-generation T-Topology ensures time-aligned signal transfer for improved memory stability and compatibility.
    Fullwidth media container description

    Ultimate-speed 10Gbit/s with USB 3.1 onboard

    With one USB 3.1 Type-A port and one reversible USB 3.1 Type-C for the very fastest USB connections, you'll experience data-transfer speeds of up to 10Gbit/s — or twice as fast USB 3.0. USB 3.1 is completely backward-compatible with your existing USB devices, and you'll be all set for USB 3.1's breakneck speeds. And ASUS-exclusive USB 3.1 Boost technology automatically accelerates USB 3.1 performance even further!
    Fullwidth media container description
