| Garanti (måneder) |
18 |
| Tilstand |
Brukt |
| Status |
Testet |
| Produktnummer |

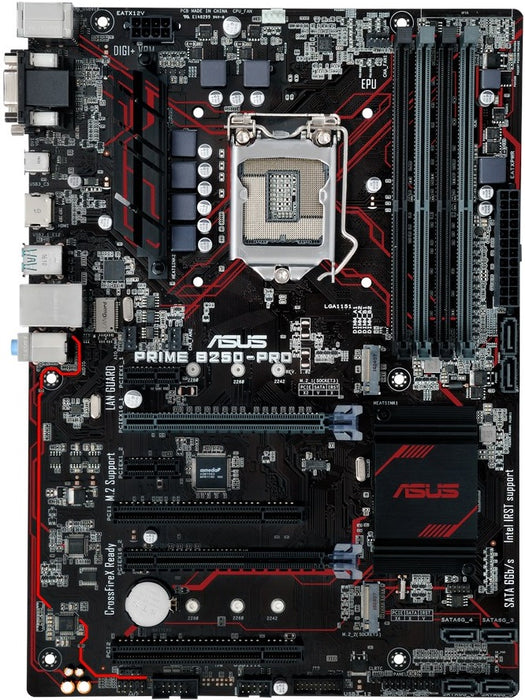

ASUS Prime B250-Pro |
| Produkttype |
Hovedkort ATX |
| Brikkesett type |
Intel B250 Express
|
| Prosessorsokkel |
LGA1151 Socket
|
| Kompatible prosessorer |
Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
|
| EAN |
4712900599220 |
| Støttet RAM |
| Maks størrelse |
64 GB
|
| Teknologi |
DDR4 |
| Bussklokke |
2400 MHz, 2133 MHz
|
| Støttet RAM-integritetskontroll |
Ikke-ECC |
| Registrert eller bufret |
Ikke-bufret |
| Egenskaper |
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
|
| Grafikk |
| Maks allokert RAM-størrelse |
1 GB
|
| Lyd |
| Type |
HD Audio (8-channel)
|
| Audio Codec |
Realtek ALC887
|
| Tilpassede standarder |
High Definition Audio
|
| LAN |
| Nettverkskontroller |
Realtek RTL8111H
|
| Nettverksgrensesnitt |
Gigabit Ethernet
|
| Ekspansjon / Tilkoplinger |
| Utvidelsesspor |
1 x CPU
4 x DIMM 288-pin
1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4 mode)
2 x PCI
2 x PCIe 3.0 x1 |
| Lagergrensesnitt |
SATA-600 -connectors: 6 x 7pin Serial ATA
SATA-600 / PCIe 3.0 -connectors: 1 x M.2
PCIe 3.0 -connectors: 1 x M.2 |
| RAID-funksjoner |
|

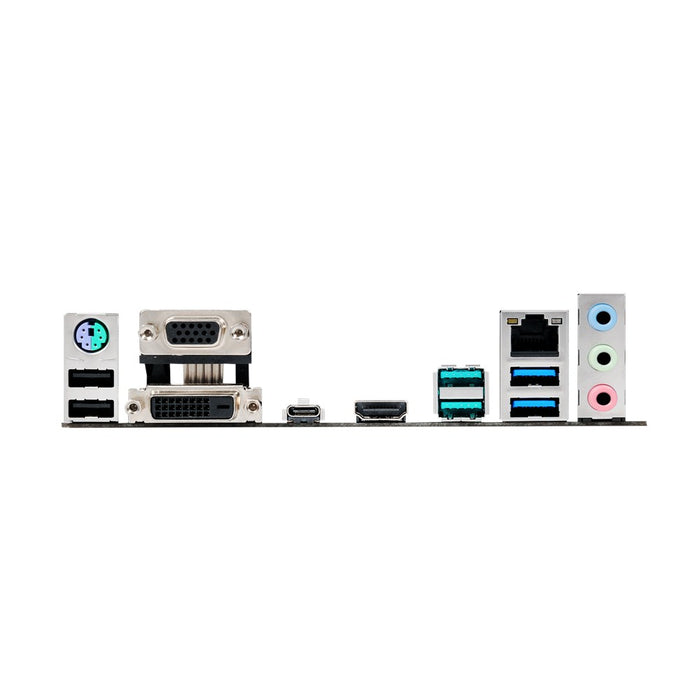

| Grensesnitt |
1 x HDMI
1 x LAN (Gigabit Ethernet)
2 x USB 3.1
1 x USB-C
2 x USB 3.0
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x PS/2 keyboard / mouse
1 x VGA
1 x DVI-D
2 x USB 2.0 |
| Interne overflater |
2 x USB 2.0 - header
2 x USB 3.0 - header
1 x serial - header
1 x SPDIF out - header
1 x audio - header |
| Strømkontakter |
24-pin main power connector, 8-pin ATX12V connector |
| Egenskaper |
| BIOS Type |
AMI |
| BIOS-egenskaper |
WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, DMI 3.0 support, SMBIOS 3.0 support, ACPI 6.0 support |
| Sov/Våkne |
Wake on LAN (WOL) |
| Maskinvarefunksjoner |
ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-Slot, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, Intel Extreme Memory Profile (XMP) support, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Fanless Design Heatsink, AMD CrossFireX technology support, Low EMI Solution, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGuard, ASUS Overvoltage Protection, Intel Optane Memory Ready, ASUS 5X Protection III, ASUS SafeSlot Core |
| Diverse |
| Bredde |
21.8 cm
|
| Høyde |
30.5 cm
|
