| Generelt |
| Garanti (måneder) |
12 |
| Tilstand |
Brukt |
| Status |
Testet |
| Produktnummer |
P8H61-M PRO |
| Produkttype |
Hovedkort - mikro ATX |
| Brikkesett type |
Intel H61 |
| Prosessorsokkel |
LGA1155-sokkel |
| Kompatible prosessorer |
Core i5, Core i3, Core i7 |
| EAN |
|
| Støttet RAM |
| Maks størrelse |
16 GB |
| Teknologi |
DDR3 |
| Bussklokke |
1333 MHz, 1066 MHz |
| Støttet RAM-integritetskontroll |
Ikke-ECC |
| Registrert eller bufret |
Ikke-bufret |
| Egenskaper |
Dobbeltkanalsminnearkitektur |
| Grafikk |
| Maks allokert RAM-størrelse |
|
| Lyd |
| Type |
HD-lyd (8-kanalers) |
| Audio Codec |
Realtek ALC887 |
| Tilpassede standarder |
High Definition Audio |
| LAN |
| Nettverkskontroller |
Realtek RTL8111E |
| Nettverksgrensesnitt |
Gigabit Ethernet |
| Ekspansjon / Tilkoplinger |
| Utvidelsesspor |
1 x CPU
2 x 240-pins DIMM
1 x PCIe 2.0 x16
1 x PCIe 2.0 x16
2 x PCIe 2.0 x1
|
| Lagergrensesnitt |
SATA-300 -kontakter: 4 x 7-pin seriell ATA - 4 enheter
ASMedia ASM1061: SATA-600 -kontakter: 2 x 7-pin seriell ATA - 2 enheter
|
| RAID-funksjoner |
|

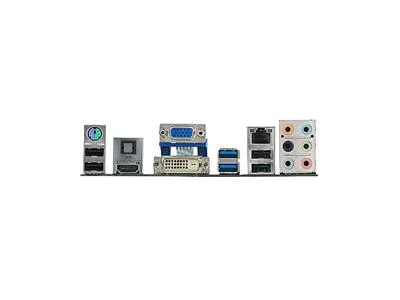

| Grensesnitt |
1 x PS/2-tastatur / -mus
1 x DVI-D
1 x VGA
1 x HDMI
1 x LAN (Gigabit Ethernet)
2 x USB 3.0
4 x USB 2.0
1 x TOSLINK
1 x lydutlinje - minijakk
1 x lydinnlinje - minijakk
1 x mikrofon - minijakk
1 x lydutlinje (side-surround) - minijakk
1 x lydutlinje (bakre) - minijakk
1 x lydutlinje (senter/subbasshøyttaler) - minijakk
|
| Interne overflater |
6 x USB 2.0 |
| Strømkontakter |
4-pin ATX12V-kontakt, 24-pin hovedstrømforsyningskontakt |
| Egenskaper |
| BIOS Type |
|
| BIOS-egenskaper |
DMI 2.0-støtte, WfM 2.0 støttet, flerispråklig BIOS, ASUS MyLogo2, ASUS EZ Flash 2, ACPI 2.0a-støtte, SMBIOS 2.6-støtte, ASUS EFI BIOS |
| Sov/Våkne |
|
| Maskinvarefunksjoner |
C.P.R. (CPU-parameterminne), jakk-retasking, ASUS Anti-Surge Protection, MemOK!, GPU Boost, CrashFree BIOS 3, ASUS Stepless Frequency Selection (SFS), lydjakkpåvisningsteknologi, ASUS EPU (Energy Processing Unit), Intel Extreme Memory Profile (XMP)-støtte, ASUS Fan Xpert, ASUS TurboV, Intel Turbo Boost Technology 2.0 |
| Diverse |
| Bredde |
24.4 cm |
| Dybde |
22.9 cm |
-
EPU
AI Suite II
System Level Energy Saving The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power usage for critical PC components in real-time–helping save power and money!
With its fast user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows you to supervise overclocking, energy management, fan speed control, voltage and sensor readings. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities.
ASUS EFI BIOS (EZ Mode)
GPU Boost
ASUS brand new EFI BIOS offers a user-friendly interface that goes beyond traditional keyboard BIOS input to enable more flexible and convenient mouse controls. You can easily navigate the new EFI BIOS with the same smoothness as their operating system. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system settings.
Instant iGPU Level Up!
GPU Boost overclocks the integrated GPU in real time for the best graphics performance. User-friendly UI facilitates flexible frequency and voltage adjustments. Its ability to deliver multiple overclocking profiles also provides rapid and stable system-level upgrades.
USB 3.0 support
ASUS provides extra SATA 6.0Gb/s ports with enhanced scalability, faster data retrieval, and double the bandwidth of current bus systems.
Experience ultra-fast data transfer at 4.8Gbps with USB 3.0 – the latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10 times faster and is also backward compatible with USB 2.0 components.
Anti-Surge Protection
Fan Xpert
Protect Your Device Anti-Surge Protection Design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect the system.
1. Real-time over voltage detection.
2. Active protection against potential damage to your motherboards and systems.
ASUS Fan Xpert intelligently allows you to adjust the CPU and chassis fan speeds according to different ambient temperatures caused by different climate conditions in different geographic regions and your PC’s loading. The built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment.
