ASUS MAXIMUS VI EXTREME, Socket-1150
Produktinfo
Kun hovedkort!
MAXIMUS VI EXTREME
Real-time monitoring and tweaking: OC Panel stuns the overclocking world
•LGA1150 socket for 4th Generation Intel®Core™ i7/ i5/ i3/ Pentium® / Celeron® Processors •Intel® Z87 Express Chipset
•OC Panel - Overclocking Command Center
•Extreme Engine Digi+ III - Hardcore power delivery with premium components
•Subzero Sense - Find out how cold your board is
•VGA Hotwire - Hotwire your system
•mPCIe Combo II + Wi-Fi 802.11ac/Bluetooth 4.0 - Extra connections to next gen standards
•4-Way NIVDIA® SLI™ / AMD CrossFireX™ Support
Designed with insight and advice from worldwide overclocking legends and built using industry-leading ROG R&D expertise, it packs the revolutionary monitoring and tweaking of OC Panel and tons of overclocking features that take performance to the next level.
For total stability, new-gen Extreme Engine Digi+ III is integrated, supporting the most extreme tuning. You get 4-way SLI™/CrossFireX™ and massive connectivity with the latest standards, including mPCIe Combo II, which offers 802.11ac Wi-Fi and M.2 (NGFF) SSD support. There’s also an upgraded UEFI BIOS, helping Maximus VI Extreme stand out: it’s already scored 7GHz+ CPU speeds and RAM frequencies close to 4GHz!
Spesifikasjoner
Generelt
|
Garanti (måneder) |
6 |
| Tilstand | Brukt |
| Status | Testet |
| I/O Shield | Nei |
| Produktnummer | MAXIMUS VI EXTREME |
|
Produkttype |
Hovedkort - ATX |
|
Brikkesett type |
Intel Z87 Express |
| Prosessorsokkel | LGA1150-sokkel |
| Kompatible prosessorer | Pentium, Celeron, Core i5, Core i3, Core i7 |
| EAN | 4716659517726 |
Støttet RAM
|
Maks størrelse |
32GB |
|
Teknologi |
DDR3 |
|
Bussklokke |
2400 MHz, 2200 MHz, 2000 MHz, 1800 MHz, 1600 MHz, 1333 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2600 MHz, 2666 MHz, 2500 MHz, 2933 MHz |
|
Støttet RAM-integritetskontroll |
Non-ECC |
|
Registrert eller bufret |
Ikke-bufret |
|
Egenskaper |
Dobbeltkanalsminnearkitektur, Intel Extreme Memory Profiles (XMP) |
Lyd
|
Type |
HD-lyd (8-kanalers) |
|
Audio Codec |
Realtek ALC1150 |
|
Tilpassede standarder |
High Definition Audio |
LAN
|
Nettverkskontroller |
Intel I217V |
|
Nettverksgrensesnitt |
Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac |
Ekspansjon / Tilkoblinger
|
Utvidelsesspor |
1 x CPU 4 x 240-pins DIMM 5 x PCIe 3.0 x16 (dobbel x8-modus; trippel: x16, x8, x8-modus; kvadruppel: x16, x8, x8, x8-modus; enkeltkort: x16-modus) 1 x PCIe 2.0 x4 1 x Mini PCIe |
|
Lagergrensesnitt |
SATA-600 -kontakter: 6 x 7-pin seriell ATA - 6 enheter - RAID 0 / RAID 1 / RAID 10 / RAID 5 ASMedia ASM1061: SATA-600 -kontakter: 4 x 7-pin seriell ATA - 4 enheter |
|
RAID-funksjoner |
Intel Smart Response Technology |
|
Grensesnitt |

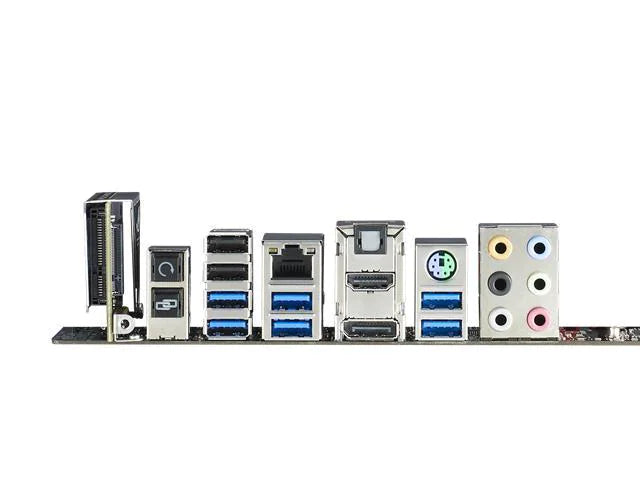

1 x PS/2-tastatur / -mus 1 x HDMI 1 x LAN (Gigabit Ethernet) 6 x USB 3.0 2 x USB 2.0 1 x lydutlinje - minijakk 1 x lydinnlinje - minijakk 1 x lydutlinje (side-surround) - minijakk 1 x lydutlinje (bakre) - minijakk 1 x lydutlinje (senter/subbasshøyttaler) - minijakk 1 x mikrofon - minijakk 1 x TOSLINK 1 x DisplayPort |
|
Interne overflater |
6 x USB 2.0 - header 2 x USB 3.0 - header 1 x SPDIF-utgang - header 1 x lyd - header |
|
Strømkontakter |
4-pin ATX12V-kontakt, 24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt |
Egenskaper
|
BIOS-egenskaper |
DMI 2.0-støtte, WfM 2.0 støttet, flerispråklig BIOS, ASUS EZ Flash 2, ASUS O.C. Profile, ACPI 2.0a-støtte, SMBIOS 2.5-støtte, USB BIOS Flashback, UEFI BIOS |
|
Maskinvarefunksjoner |
C.P.R. (CPU-parameterminne), jakk-retasking, MemOK!, 8+2 Phase Power Design, ASUS Q-Design, ROG Connect, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ProbeIt, CrashFree BIOS 3, lydjakkpåvisningsteknologi, ASUS CPU Level Up, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, ASUS Extreme Tweaker, Intel Extreme Memory Profile (XMP)-støtte, NVIDIA Quad SLI Technology Support, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), GPU.DIMM Post, Intel Clear Video HD Technology, Intel Smart Response Technology, ROG BIOS Print, USB 3.0 Boost, ASUS ROG Extreme OC, ROG VGA Hotwire, ROG Subzero Sense, Q-Code, AMD CrossFireX-teknologistøtte, ASUS DIGI+ Power Control, ASUS Fan Xpert 2, ASUS USB Charger+, ASUS Wi-Fi GO!, Intel Rapid Start Technology, Intel Smart Connect Technology, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Disk Unlocker, Dual Intelligent Processors 4, ASUS Extreme Engine Digi+ III, ASUS SSD Secure Erase |
Diverse
|
Bredde |
30.5 cm |
|
Dybde |
24.4 cm |
