| Garanti (måneder) |
12 |
| Tilstand |
Brukt |
| Status |
Testet |
| Produktnummer |
90-MXB510-A0UAYZ |
| Produkttype |
Hovedkort - ATX
|
| Brikkesett type |
AMD B350 FCH |
| Prosessorsokkel |
Socket AM4 |
| Kompatible prosessorer |
Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon) |
| EAN |
4717677333169 |
| Støttet RAM |
| Maks størrelse |
64 GB |
| Teknologi |
DDR4 |
| Bussklokke |
2400 MHz, 2133 MHz, 2667 MHz |
| Støttet RAM-integritetskontroll |
Ikke-ECC |
| Registrert eller bufret |
Ikke-bufret |
| Egenskaper |
Dual channel memory architecture |
| Grafikk |
| Maks allokert RAM-størrelse |
2 GB |
| Lyd |
| Type |
HD Audio (8-channel) |
| Audio Codec |
Realtek ALC892 |
| Tilpassede standarder |
High Definition Audio, Premium Blu-ray audio support |
| LAN |
| Nettverkskontroller |
Realtek RTL8111GR |
| Nettverksgrensesnitt |
Gigabit Ethernet |
| Ekspansjon / Tilkoplinger |
| Utvidelsesspor |
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16/x8 mode (with AMD Ryzen CPU); x8 mode (with AMD 7th Generation A-series/Athlon CPU)) ¦ 1 x PCIe 3.0 x16 (x4 mode (with AMD Ryzen CPU); x2 mode (with AMD 7th Generation A-series/Athlon CPU)) ¦ 4 x PCIe 2.0 x1 |
| Lagergrensesnitt |
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 -connectors: 2 x 7pin Serial ATA ¦ SATA-600 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x Ultra M.2 |
| RAID-funksjoner |
|
| Grensesnitt |

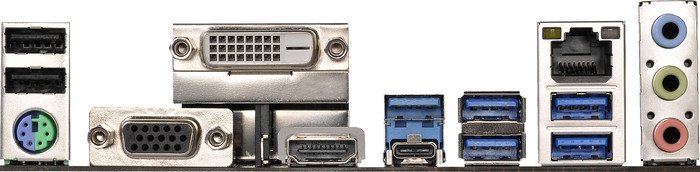

1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 2 x USB 2.0 ¦ 1 x USB-C ¦ 5 x USB 3.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack |
| Interne overflater |
2 x USB 2.0 - header ¦ 1 x USB 3.0 - header ¦ 1 x serial - header ¦ 1 x audio - header |
| Strømkontakter |
24-pin main power connector, 8-pin ATX12V connector |
| Egenskaper |
| BIOS Type |
AMI |
| BIOS-egenskaper |
JumperFree, SMBIOS 2.3 support, UEFI BIOS |
| Sov/Våkne |
Wake on LAN (WOL) |
| Maskinvarefunksjoner |
ASRock Instant Boot, 15µ Gold Contact, ASRock APP Charger, ASRock XFast LAN, ASRock Crashless BIOS, ASRock Internet Flash, Digi Power Design, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Key Master, Triple Monitor, ELNA Audio Capacitors, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, Premium Power Choke, ASRock RGB LED, 9 Phase Power Design |
| Diverse |
| Bredde |
30.5 cm |
| Høyde |
22.4 cm |
