| Garanti (måneder) |
18 |
| Tilstand |
Brukt |
| Status |
Testet |
| Produktnummer |
90MB0QK0-M0EAY0
|
| Produkttype |
Hovedkort - ATX
|
| Brikkesett type |
Intel X99 Express
|
| Prosessorsokkel |
LGA2011-v3-sokkel
|
| Kompatible prosessorer |
Core i7 Extreme Edition, Core i7
|
| EAN |
4712900403329 |
| Støttet RAM |
| Maks størrelse |
128 GB
|
| Teknologi |
DDR4
|
| Bussklokke |
2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2400 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3333 MHz (O.C.)
|
| Støttet RAM-integritetskontroll |
Ikke-ECC |
| Registrert eller bufret |
Ikke-bufret |
| Egenskaper |
Intel Extreme Memory Profiles (XMP), quad channel memory architecture
|
| Grafikk |
| Maks allokert RAM-størrelse |
|
| Lyd |
| Type |
HD-lyd (8-kanalers)
|
| Audio Codec |
SupremeFX
|
| Tilpassede standarder |
High Definition Audio
|
| LAN |
| Nettverkskontroller |
Intel I218V
|
| Nettverksgrensesnitt |
Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac
|
| Ekspansjon / Tilkoplinger |
| Utvidelsesspor |
1 x CPU
8 x DIMM 288-pin
3 x PCIe 3.0 x16 ( dual x16 mode; triple: x16, x8, x8 mode )
1 x PCIe 2.0 x16 ( x4 mode )
2 x PCIe 2.0 x1
|
| Lagergrensesnitt |
SATA-600 -connectors: 4 x 7pin SATA, 1 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 3.0 -connectors: 1 x M.2, 1 x U.2
|
| RAID-funksjoner |
Intel Smart Response Technology
|

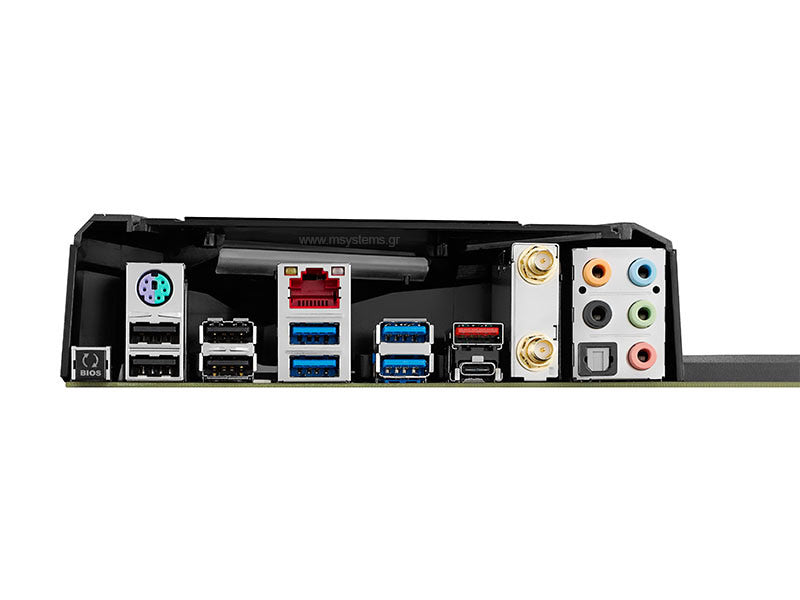

| Grensesnitt |
1 x LAN (Gigabit Ethernet)
4 x USB 2.0
4 x USB 3.0
1 x audio line-out - mini-jack
1 x audio line-in - mini-jack
1 x microphone - mini-jack
1 x audio line-out (rear) - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack
1 x TOSLINK
1 x PS/2 keyboard / mouse
1 x USB 3.1
1 x USB-C
|
| Interne overflater |
4 x USB 2.0 - header
4 x USB 3.0 - header
1 x Thunderbolt - header
1 x serial - header
|
| Strømkontakter |
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
|
| Egenskaper |
| BIOS Type |
|
| BIOS-egenskaper |
WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, USB BIOS Flashback, UEFI BIOS, ACPI 5.0 support, ASUS EZ Flash 3, SMBIOS 3.0 support
|
| Sov/Våkne |
Wake on LAN (WOL), wake on PME |
| Maskinvarefunksjoner |
Jack retasking, MemOK!, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS Q-Shield, NVIDIA 3-way SLI Technology Support, Intel Extreme Memory Profile (XMP) support, NVIDIA 2-way SLI Technology Support, ASUS DIGI+ VRM, Intel Smart Response Technology, USB 3.0 Boost, Q-Code, SupremeFX Shielding technology, AMD CrossFireX technology support, AMD 3-way CrossFireX technology support, Disk Unlocker, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, Dual Intelligent Processors 5, LANGuard, Sonic Radar II, Intel Rapid Recovery Technology, ASUS OC Socket, USB 3.1 Boost, GameFirst IV, ASUS Gamer's Guardian, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS SafeSlot, Intel Turbo Boost Technology 3.0
|
| Diverse |
| Høyde |
30.5 cm
|
| Bredde |
24.4 cm
|
