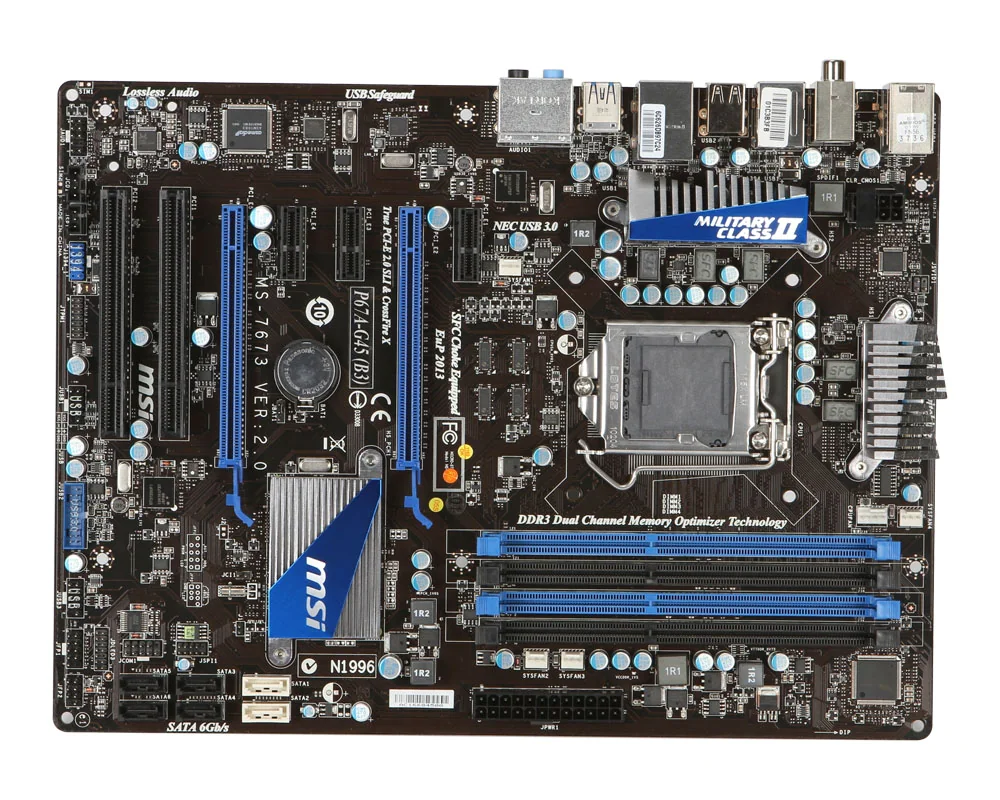

MSI P67A-G45 B3, Socket-1155

Original price 749.00 kr
Original price 749.00 kr - Original price 749.00 kr
Original price 749.00 kr
Current price 649.00 kr
649.00 kr - 649.00 kr
Current price 649.00 kr

Kun hovedkort! HP-vifte medfølger; HP 644724-001.

B3 Stepping Ready

To fix Intel's 6 Series chipset design error, the SATA problems in its 6 Series chipset, MSI implements the latest Intel B3 Stepping 6 Series chipset on its P67/H67 mainboards for fixing SATA problems in the Intel Series 6 chipsets. Consumers can now identify the latest MSI P67/H67 mainboards equipped with the Intel B3 Stepping chipset with the MSI B3 Stepping Ready logo. This provides a more confident way to identify your next-generation P67/H67 mainboard.

Military Class II

The perfect trinity of quality, stability and efficiency all exist at one mainboard to meet end user expectations. The MSI Military Class II series products provide the long lifespan, unparalleled quality, extreme performance and ultimate efficiency.

OC Genie II

Just press the OC Genie button or enable OC Genie II function in BIOS menu, the CPU performance (P67 series) or the 3D performance of iGPU (H67 series) will be highly improved. Whether users want to watch a high bit-rate HD movie or go online gaming, both can be enjoyed with image performance that is smoother and lag-free!

THX TruStudio PRO

THX is a trade mark of a high-end audio/visual reproduction standard for movies, home theaters, computer speakers and other audio devices. THX Certified Audio products are designed to let users experience movies & videos as live show. The true sound effect can make high definition video more powerful.

ATI CrossFireX

ATI CrossFireX technology allows you to expand your system's graphics capabilities. It allows you the ability to scale your system's graphics horsepower as you need it, supporting up to four ATI Radeon HD graphics cards, making it the most scalable gaming platform ever.

USB 3.0

Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute. MSI also has implemented a front panel USB 3.0 port, making the use of an external USB 3.0 device even more convenient.

SATA 6Gb/s

SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your mainboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It is also the current trend for upcoming high-speed internal storage devices to to break the existing bottleneck of a PC's performance.

Super Charger

MSI Super Charger is a Windows resident program capable of revising the power supply mode of your USB port to become more powerful. Once your phone or tablet is connected to your USB port, the Super Charger sends a signal to initiate its charging circuit, making it a really smart and convenient charging solution for mobile computing needs.

Winki 3

Winki 3 is a free Linux-based O/S which is based on the Linux core. With an ultra-fast booting speed and a multi-language interface, the built-in Winki 3 provides an easy-to-use internet environment that includes the most popular functions such as internet surfing, web mail, instant messaging, picture browsing, and more. It's the most practical way to be online in the shortest time.


Garanti (måneder)


Tilstand Brukt
Status Testet
I/O Shield Ja
Produktnummer P67A-G45 (B3)
EAN 4719072217303


Hovedkort - ATX

Brikkesett type

 Intel P67 Express

Prosessorsokkel LGA1155
Kompatible prosessorer

Støttet RAM

Maks størrelse

32 GB




1333 MHz, 1066 MHz

Støttet RAM-integritetskontroll


Registrert eller bufret



Minnesarkitektur med dubbel kanal


Maks allokert RAM-størrelse



HD-lyd (8 kanaler)

Audio Codec

Realtek ALC892

Tilpassede standarder

HD-lyd, THX TruStudio Pro



Realtek RTL8111E


Gigabit Ethernet

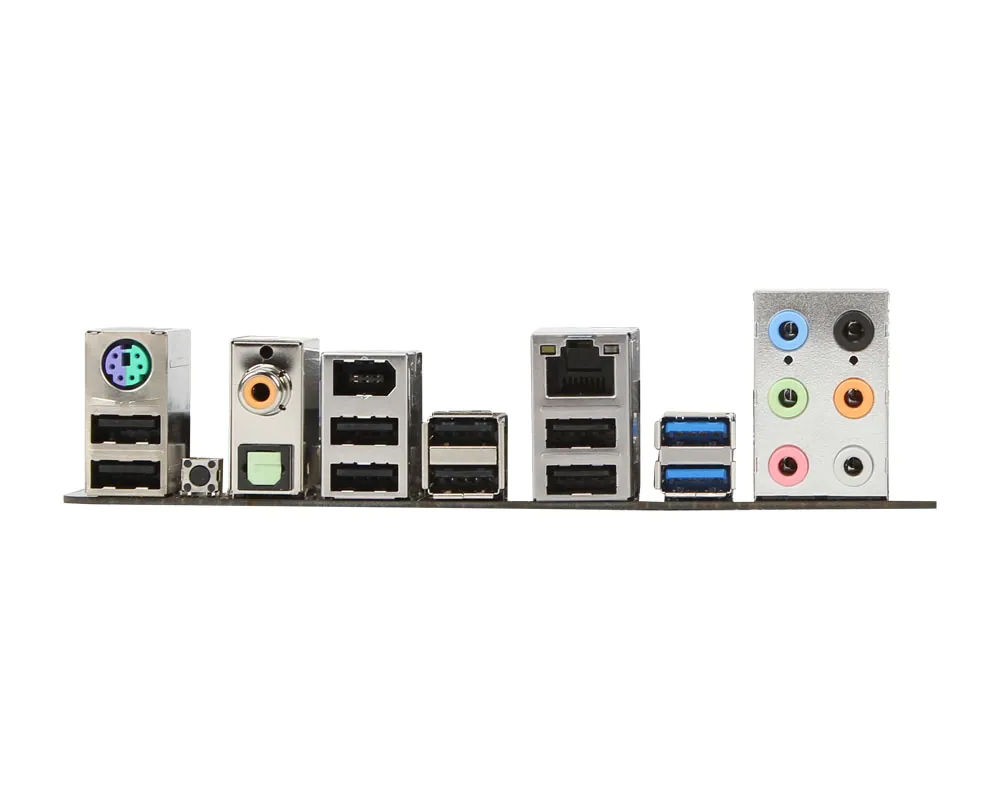

Ekspansjon / Tilkoblinger


1 x CPU
4 x DIMM 240-stift (1.5 V)
2 x PCIe 2.0 x16
3 x PCIe 2.0 x1
2 x PCI (3.3 V/ 5 V)


SATA-300 -kontakter: 4 x 7 pin Seriell ATA - 4 enheter - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 -kontakter: 2 x 7 pin seriell ATA - 2 enheter - RAID 0 / RAID 1


 1 x PS/2-tangentbord/mus
8 x USB 2.0
2 x USB 3.0
1 x SPDIF-utgång
1 x FireWire - 6 stifts FireWire
1 x LAN (Gigabit Ethernet)
1 x ljudutgång - mini-jack
1 x ljudingång - mini-jack
1 x mikrofon - mini-jack
1 x ljudingång (sidosurround) - mini-jack
1 x ljudutgång (bakre) - mini-jack
1 x ljudutgång (center/subwoofer) - mini-jack

Interne overflater

1 x lyd - 4 stifts MPC
2 x USB 3.0
1 x FireWire


24-pin kontakt för huvudström, 8-pin ATX12V-kontakt



DMI-stöd, M-Flash, MSI ClickBIOS


Detektering av intrång i chassit, detekteringsteknik för ljudjack, MSI Active Phase Switching (APS), MSI Military Class II, OC Genie II, MSI Winki 3, Instant OC, AMD CrossFireX-tekniksupport



30.5 cm


22.5 cm
