Gigabyte GA-970A-UD3, Socket-AM3+

Utsolgt
Original price 499.00 kr - Original price 499.00 kr
Original price
499.00 kr
499.00 kr - 499.00 kr
Current price 499.00 kr
Lagerstatus:
Utsolgt
Produktinfo

Kun hovedkort!

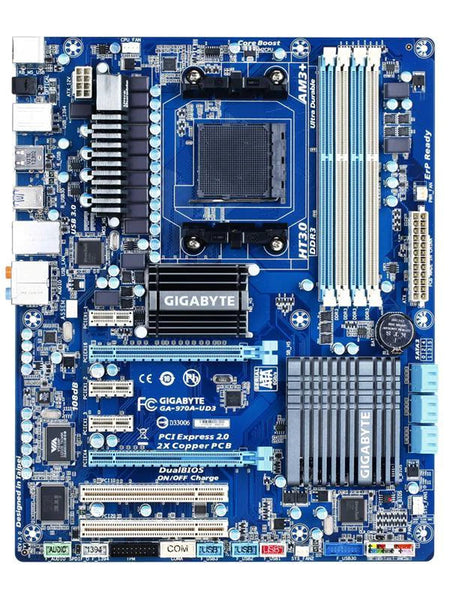

Gigabyte GA-970A-UD3, Socket-AM3+

  • GIGABYTE UEFI DualBIOS™ technology.
  • GIGABYTE Ultra Durable™4 technology.
  • Supports AMD AM3+ FX/ AM3 Phenom™ II, Athlon™ II series processors.
  • 8+2 phase CPU VRM power design for AMD high-TDP CPU support.
  • 2 PCI-E 2.0 x16 interfaces with AMD CrossFire support.
  • Hi-def 108dB Signal-to-noise ratio Blu-ray DVD audio playback.
  • 6 native SATA3 ports with up to 6Gbps link speed and RAID 0,1,5,10 support.
  • 4 USB 3.0 ports with transfer rates of up to 5Gbps.
  • GIGABYTE On/Off Charge technology with 3x USB power design.



Introduction.
The 970A-UD3 motherboard is designed to offer a stable, high-speed platform for delivering amazingly fast data transfer via the GIGABYTE 333 onboard acceleration technologies. Featuring the USB3.0 controller, AMD 900 series motherboards allow users to take advantage of super fast USB transfer rates of up to 5Gbps, delivering 10x faster data transfer compared to USB 2.0. Utilizing the industry's first Serial ATA Revision 3.0 solution via AMD SB950 chipset, GIGABYTE AMD 900 series motherboards offer native 6 ports of next generation high speed data storage devices support with data transfer speeds of up to 6 Gbps with RAID 0, 1, 5, 10. The AMD 900 series motherboards introduce a unique hardware design with lower resistance fuses for ensuring lower voltage drops and providing more stable and plentiful power delivery. USB ports also benefit from a 3x power boost for better power delivery to power hungry USB devices.


Insist on an Ultra Durable Motherboard.
GIGABYTE Ultra Durable™ 4 design features 2X the amount of copper of a traditional motherboard for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable™ 4 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2X Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking.


UEFI DualBIOS™ Technology.
With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS™ makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems.

Multi-display support with AMD CrossFire.

Flexible graphics capabilities - Up to 2 VGA cards are supported for 2 way AMD CrossFire™ (running at x16, x4 bandwidth), delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.


108dB Signal-to-Noise ratio playback.
GIGABYTE motherboards feature higher capability audio solution with 108dB Signal-to-Noise ratio (SNR) playback quality to deliver high-performance, multi-channel HD audio. SNR is a comparison of the amount of signal to the amount of noise such as hiss present in the signal (expressed in Decibels). A higher SNR equals a better audio experience. For example, 108dB, is a high audio specification, as this means the audio signal is 108dB higher than the level of the noise.

Get Ready for New Generation of 32nm AMD AM3+ CPU.

GIGABYTE's AMD motherboards are ready to support new generation of 32nm AMD AM3+ multi-core processors, delivering the very best platform for multitasking, multimedia and high performance gaming.



Supports next generation of 45nm AMD AM3 CPU.

This motherboard designs with Split Power Plane, 8+2 phase VRM to support AMD the latest 45nm AM3 Phenom™II series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.


GIGABYTE 333 Onboard Acceleration.

GIGABYTE motherboards feature GIGABYTE 333 Onboard Acceleration , a range of the latest technologies that are designed help speed up data transfer, including SuperSpeed USB 3.0 technology, SATA Revision 3.0 (6Gbps) technology and an unprecedented 3x USB power boost on USB ports for more power hungry USB devices.
Spesifikasjoner

Generelt

Garanti (måneder)

6

Tilstand Brukt
Status Testet
I/O Shield Ja
Produktnummer GA-970A-UD3 REV.3.0

Produkttype

Hovedkort - ATX

Brikkesett type

 AMD 970 / AMD SB950

Prosessorsokkel Socket AM3+
Kompatible prosessorer Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Athlon II, Phenom II X4, Phenom II X6, FX
EAN 4719331820282

Støttet RAM

Maks størrelse

32 GB

Teknologi

DDR3

Bussklokke

2000 MHz, 1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz

Støttet RAM-integritetskontroll

Non-ECC

Egenskaper

Dobbeltkanalsminnearkitektur

Lyd

Type

HD-lyd (8-kanalers)

Audio Codec

VIA VT2021

Tilpassede standarder

High Definition Audio

LAN

Nettverksgrensesnitt

Gigabit Ethernet

Ekspansjon / Tilkoblinger

Utvidelsesspor

1 x CPU
4 x 240-pins DIMM (1.5 V)
1 x PCIe 2.0 x16
1 x PCIe 2.0 x16 (x4-modus)
3 x PCIe 2.0 x1
2 x PCI

Lagergrensesnitt

AMD SB950: SATA-600 -kontakter: 6 x 7-pin seriell ATA - 6 enheter - RAID 0 / RAID 1 / RAID 10 / RAID 5 / JBOD

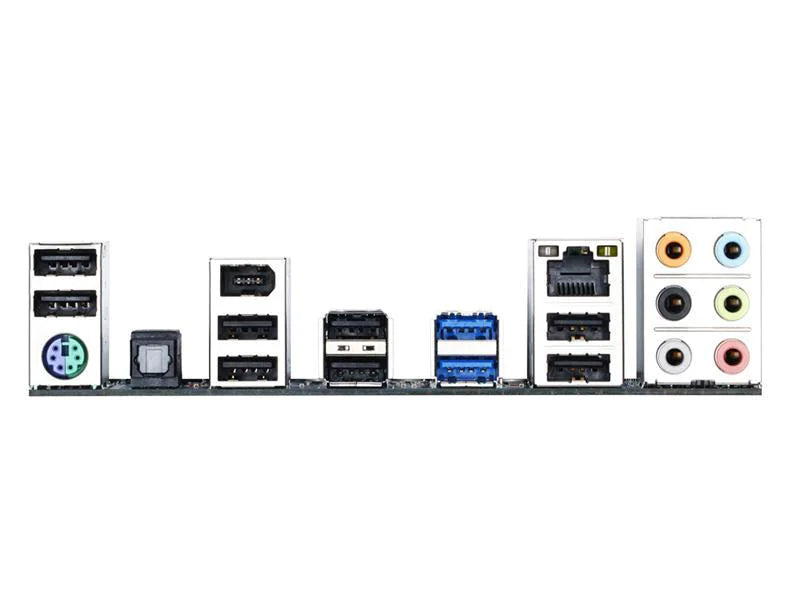

Grensesnitt

1 x PS/2-tastatur / -mus
1 x TOSLINK
1 x FireWire
8 x USB 2.0
2 x USB 3.0
1 x LAN (Gigabit Ethernet)
1 x lydutlinje - minijakk
1 x lydinnlinje - minijakk
1 x mikrofon - minijakk
1 x lydutlinje (side-surround) - minijakk
1 x lydutlinje (bakre) - minijakk
1 x lydutlinje (senter/subbasshøyttaler) - minijakk

Interne overflater

1 x lyd - header
1 x SPDIF-utgang - header
6 x USB 2.0
2 x USB 3.0
1 x FireWire - header
1 x seriell - header

Strømkontakter

24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt

Egenskaper

BIOS-egenskaper

DMI 2.0-støtte, ACPI 2.0a-støtte, SMBIOS 2.6-støtte, UEFI BIOS

Maskinvarefunksjoner

DualBIOS, Q-Flash, 8+2 Phase Power Design, AutoGreen, EasyTune6, On/Off Charge, GIGABYTE 333 Onboard Acceleration, AMD CrossFireX-teknologistøtte, Ultra Durable 4

Diverse

Bredde

30.5 cm

Dybde

24.4 cm
