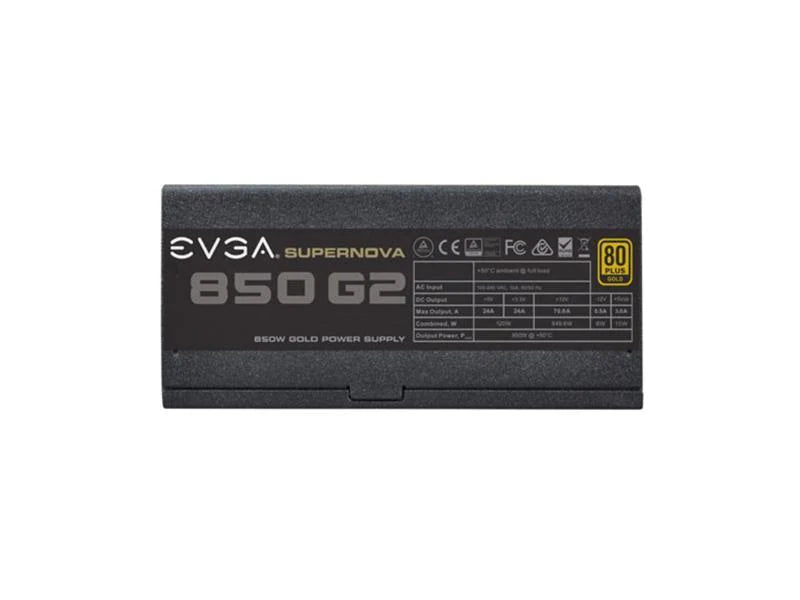

EVGA SuperNOVA 850 G2, 850W PSU
Produktinfo
OBS: 1 PCIe-port er defekt.
Ready for 4th Generation Intel Core Processors (C6/C7 Idle Mode)
Unleash the next generation in power with the EVGA SuperNOVA 850 G2 Power Supply. Based on the award winning G2 series Power Supplies from EVGA, this power supply features 80 PLUS Gold rated efficiency, and clean, continuous power to every component
The new ECO Thermal Control Fan System offers fan modes to provide zero fan noise during low load operations. This provides improved efficiency for longer operation, less power consumption, reduced energy costs and minimal heat dissipation.
Backed by a 10 year warranty and Japanese capacitor design, the EVGA SuperNOVA 850 G2 is not only the right choice for your system today, it is also the best choice for your system tomorrow.
FEATURES
- 80 PLUS Gold certified, with up to 90% efficiency under typical loads
- Superior vertical double layer main transformer increases power output
- ECO Intelligent Thermal Control Fan system (Zero Fan Noise < 45C)
- Highest quality Japanese Nippon Chemi-Con solid state capacitors ensure long-term reliability
- Fully Modular to reduce clutter and improve airflow
- Quiet and Intelligent Auto Fan for near-silent operation
- High Amperage Single-Rail Design for maximum power and efficiency
- Over Power/Under Power/Over Voltage/Short Circuit protection built in
- EVGA's unparalleled Customer Support
- An outstanding 10 Year Warranty
Heavy-duty protections, including:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OCP (Over Current Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)
EVGA SuperNOVA 850/750 G2 Power Supplies
Spesifikasjoner
Generelt
|
Garanti (måneder) |
12 |
| Tilstand | Brukt |
| Status | Testet |
| Produktnummer | 220-G2-0850-X2 |
|
Enhetstype |
Strømforsyning - intern |
|
PSU-formfaktor |
ATX |
| EAN | 4250812402752 |
Strømenhet
|
Inngangsspenning |
AC 100-240 V |
|
Frekvens nødvendig |
50/60 Hz |
| Strømtilkobling for CPU (4+4-pin) | 2 |
|
Strømtilkobling for Floppy (4-pin mini) |
1 |
| Strømtilkobling for Molex (4-pin) | 4 |
| Strømtilkobling for hovedkort (20-4-pin) | 1 |
| Strømtilkobling for PCI Express (6+2-pin) | 4 |
| Strømtilkobling for PCI Express (6-pin) | 2 |
| Strømtilkobling for SATA (15-pin) | 10 |
|
Utgangsspenning |
+3.3, +5, ±12 V |
|
Effektkapasitet |
850 watt |
|
Utgangsstrøm |
+3.3V - 24 A +5V - 24 A +12V - 70.8 A +5VSB - 3 A -12V - 0.5 A |
| Effektivitet | 90 % (115 VAC) / 92 % (220-240 VAC) |
|
Modulkabelstyring |
Ja |
|
80 PLUS-sertifisering |
80 PLUS Gold |
Diverse
|
MTBF |
100,000 time(r) |
|
Egenskaper |
Overstrømbeskyttelse, overspenningsvern, overstrømsbeskyttelse, SLI-klar, underspenningsbeskyttelse, kortslutningsbeskyttelse, kjølevifte med dobbeltkulelager, Intel 4th-gen CPU (Haswell)-kompatibel |
|
Tilpassede standarder |
TUV, BSMI, CB, FCC, RoHS, WEEE, cTUVus, RCM |
Størrelse og vekt
|
Bredde |
15 cm |
|
Dybde |
18 cm |
|
Høyde |
8.5 cm |
|
Vekt |
3.63 kg |
