ASUS Pro WS C621-64L SAGE/10G - LGA3647

Name: ASUS Pro WS C621-64L SAGE/10G - LGA3647
Brand: Rebuild IT
SKU: 101150
Price: 9999.0 NOK
Availability: OutOfStock

Varenummer - 101150

Utsolgt

9,999.00 kr - 9,999.00 kr

9,999.00 kr

9,999.00 kr - 9,999.00 kr

9,999.00 kr

Status:

Ingen på lager

Spesifikasjoner
Produktinfo

Generelt
Garanti (måneder)	18
Tilstand	Brukt
Status	Testet
Produktnummer	90SW00R0-M0EAY0
Produkttype	Hovedkort - SSI CEB
Brikkesett type	Intel C621
Prosessorsokkel	LGA3647
Kompatible prosessorer	Xeon W-3200, Xeon
EAN	4718017390002
Støttet RAM
Maks størrelse
Teknologi	DDR4 SDRAM
Bussklokke	2933 MHz, 2666 MHz
Støttet RAM-integritetskontroll	ECC
Registrert eller bufret
Egenskaper
Grafikk
Maks allokert RAM-størrelse
Lyd
Type	Lydkort
Audio Codec	Realtek ALCS1220A
Tilpassede standarder	High Definition Audio
LAN
Nettverkskontroller	2 x Intel I210AT
Nettverksgrensesnitt	2 x Gigabit Ethernet
Ekspansjon / Tilkoplinger
Utvidelsesspor	12 x 288-pins DIMM, 4 x PCIe 3.0 x16, 1 x CPU, 1 x PCIe 3.0 x16 (x4-modus)
Lagergrensesnitt	SATA-600 -kontakter: 2 x 7-pin seriell ATA, SATA-600 / PCIe 3.0 -kontakter: 1 x M.2, Intel C621: SATA-600 -kontakter: 8 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID-funksjoner
Grensesnitt	1 x USB 3.2 Gen 2, 1 x USB-C Gen2, 1 x mikrofon - minijakk, 2 x LAN (Gigabit Ethernet), 1 x lydutlinje - minijakk, 4 x USB 3.2 Gen 1, 1 x lydutlinje (bakre) - minijakk, 1 x lydinnlinje - minijakk, 1 x TOSLINK, 1 x lydutlinje (senter/subbasshøyttaler) - minijakk
Interne overflater	1 x lyd - header, 1 x USB 3.2 Gen 2 - header, 2 x USB 3.2 Gen 1 - header, 1 x seriell - header, 2 x USB 2.0 - header
Strømkontakter	2 x 8-pins ATX12 V-kontakter, 24-pin hovedstrømforsyningskontakt
Egenskaper
BIOS Type
BIOS-egenskaper
Sov/Våkne	Wake on LAN (WOL)
Maskinvarefunksjoner	AMD 4-veis CrossFireX-teknologistøtte, M.2-kjølelegeme, NVIDIA 4-way SLI Technology Support, Preboot eXecution Environment (PXE), Intel VROC support
Diverse
Bredde	30.5 cm
Dybde	27.7 cm

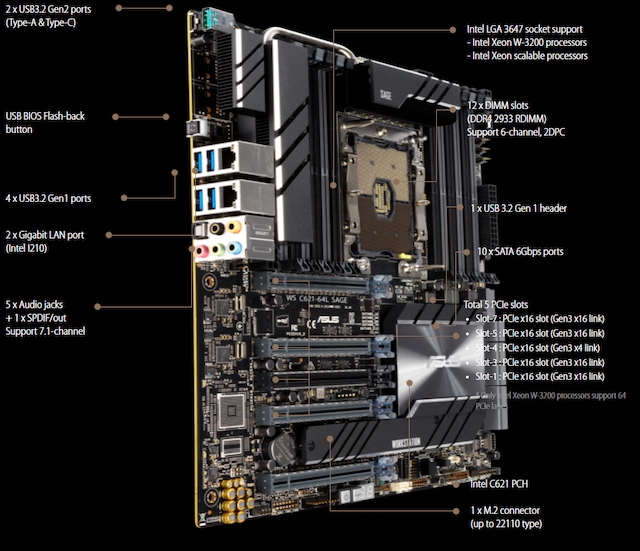

ASUS PRO WS C621-64L SAGE

Intel LGA 3647 CEB workstation motherboard with support for 4 GPUs, 12 DIMMs, 10 SATAs, M.2, Intel Gigabit LAN, USB 3.2 Gen 2 and ASUS Control Center
- Single-socket motherboard is designed for Intel® Xeon® W-3200 processors and Intel Xeon Scalable processors
- Fits up to four double-decked actively or passively cooled graphics cards with true PCIe® Gen 3 x16 link bandwidth, and supports NVIDIA® Tesla and Quadro®
- Supports up to 12 DIMMs for up to 1.5 TBof memory with Error-correcting code (ECC) for increased accuracy in designsand simulations and system reliability
- Ultra-efficient VRM heatsink: Metal-fin-array design maximizes surface area for heat dissipation to enable unthrottled performance
- Features ASUS Control Center (ACC), a centralized and integrated IT management platform
- Next-gen transfer speeds with an up to 32 Gbps M.2, plus an up to 10 Gbps USB 3.2 Gen 2 Type-A and Type-C™
WORKSTATION MOTHERBOARD

ASUS Pro Workstation motherboards are designed for professionals working in AI, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software with support for out-of-band management, so they're also an efficient and cost-effective option for IT administrators

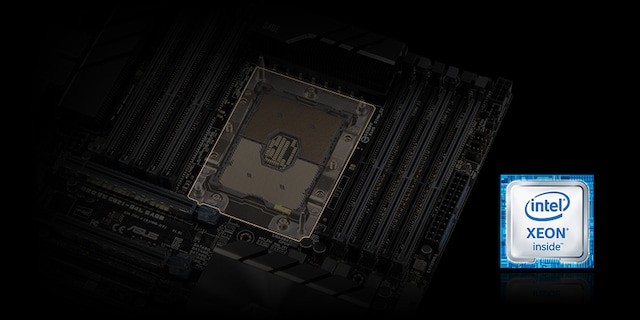

Breakthrough performance in a single-socket solution

Built for advanced workstation professionals, Pro WS C621-64L SAGE is powered by the latest Intel® Xeon® W-3200 processors that support up to 28 cores, 56 threads and 64 PCIe 3.0 in a single socket. Designed for faster visualizations, simulations and rendering capabilities across demanding applications of all types, Pro WS C621-64L SAGE also supports Intel® Xeon® Scalable processors, which utilize the same six-channel LGA3647 socket as the Intel Xeon® W-3200 processors.

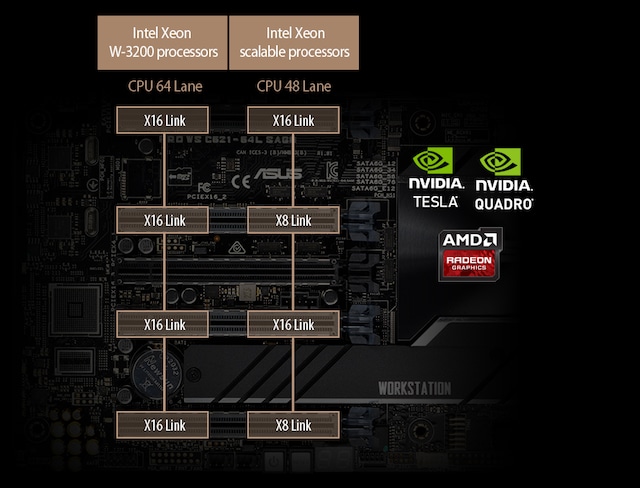

Four GPUs support, faster bandwidth

Pro WS C621-64L SAGE fits up to four double-decked actively or passively cooled graphics cards, which each support PCIe Gen 3 x16 link bandwidth to ensure fast and fluid animations and model rendering. It also supports the latest NVIDIA® Tesla® and Quadro® graphics cards to deliver the horsepower needed to run design, modeling, medical research, and processing-intensive simulations and rendering applications.

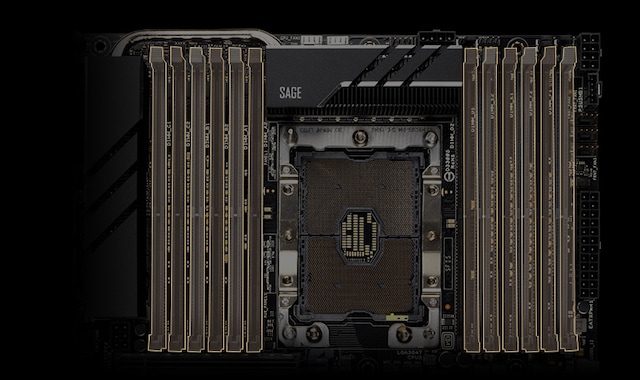

Make your memory faster and reliable

Along with 12 DIMM for up to 1.5 TB of memory, Pro WS C621-64L SAGE supports Error-correcting code (ECC) to eliminate application or system crashes by automatically detecting and repairing single-bit memory errors.

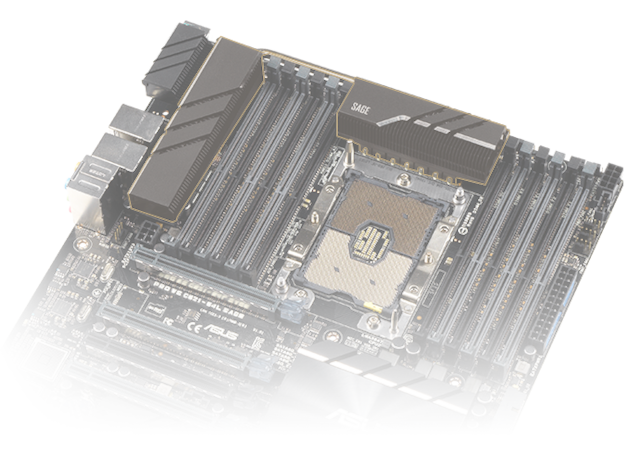

Multiple ultra-efficient heatsinks

A header to keep ahead

Pro WS C621-64L SAGE features a thoughtful thermal design to ensure maximum performance with no CPU throttling. Its ultra-efficient VRM heatsink with a metal fin array maximizes surface area for heat dissipation, and its heatsinks and a connecting heat-pipe that's situated in the direct path of airflow combine to ensure optimal cooling performance — even under the most demanding workloads.

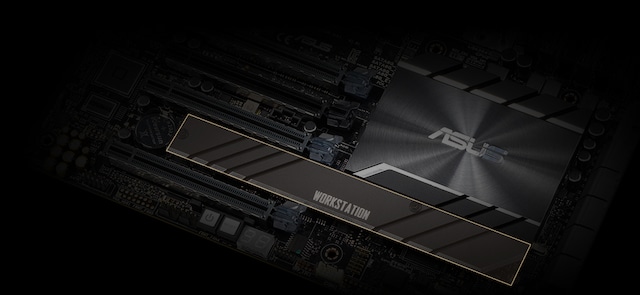

M.2 heatsink

Keep your SSD cooler

Pro WS C621-64L SAGE features an ultra-efficient heatsink to reduce M.2 SSD temperatures for optimal storage performance and improved SSD longevity.

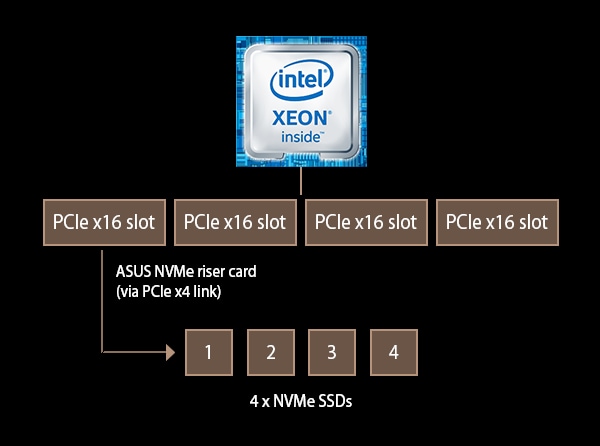

Intel VROC

Combining the performance and flexibility that designers want and need, Pro WS C621-64L SAGE supports an ASUS NVMe® riser card to expand to up to four NVMe SSDs, and it utilizes Intel® Virtual RAID on CPU (VROC) to directly attach NVMe SSDs to the CPU PCIe lanes to unleash NVMe RAID performance.

* Intel^® VROC is supported via RSTe, VROC_HW_Key are to be purchased separately. NVMe RAID type and function will depend on Intel® VROC_HW_ key installed.

ASUS Control Center

The ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

SafeSlot

Protect your graphics card investment

SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using an insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

Ready for Intel^® Xeon^® W-3200 Processors

The Intel^®Xeon^®W-3200 processors are purpose built and optimized for advanced workstation professionals in a single-socket solution. These processors are designed for heavily and lightly threaded, I/O-intensive workloads across architecture, engineering, and construction (AEC), media and entertainment (M&E), artificial intelligence (AI), oil & gas, and data sciences.

Ready for Intel® Xeon® Scalable Processors

Drive actionable insight, count on hardware-based security, and deploy dynamic service delivery with Intel® Xeon® Scalable processors. Support your hybrid cloud infrastructure and most demanding applications – including in-memory analytics, artificial intelligence, autonomous driving, high performance computing (HPC), and network transformation.
