Asrock B550 PHANTOM GAMING 4 AC - AM4

Asrock B550 PHANTOM GAMING 4 AC - AM4

Varenummer - 100756
1,499.00 kr - 1,499.00 kr
1,499.00 kr
1,499.00 kr - 1,499.00 kr
1,499.00 kr
Status:
1 på lager



  • Spesifikasjoner
  • Produktinfo
  • Generelt
    Garanti (måneder) 18
    Tilstand Brukt
    Status Testet
    Produktnummer B089VZFWHB
    Produkttype Hovedkort
    Brikkesett type AMD B550
    Prosessorsokkel AM4
    Kompatible prosessorer •     Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series,
    4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
    * Not compatible with AMD Athlon™ Processors.
    EAN 4710483931512
    Støttet RAM
    Maks størrelse 128 GB
    Teknologi DDR4
    Bussklokke AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC)
    /4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/
    4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/
    3600(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC & nonECC, un-buffered memory*
    •     AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC)
    /4666(OC)/4600(OC)/4533(OC)/4466(OC)/4400(OC)/4333
    (OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/
    3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/2667-
    /2400/2133 ECC & non-ECC, un-buffered memory*
    Støttet RAM-integritetskontroll Ikke-ECC
    Registrert eller bufret Ikke-bufret
    Egenskaper •     Supports Extreme Memory Profile (XMP) memory modules
    Grafikk
    Maks allokert RAM-størrelse 16 GB
    Lyd
    Type 7.1 CH HD Audio
    Audio Codec Realtek ALC897
    Tilpassede standarder
    LAN
    Nettverkskontroller Realtek RTL8111H
    Intel® 802.11ac WiFi Module
    Nettverksgrensesnitt Gigabit LAN 10/100/1000 Mb/s
    802.11a/b/g/n/ac
    Ekspansjon / Tilkoplinger
    Utvidelsesspor
    Lagergrensesnitt 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,
    RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
    1 x Hyper M.2 Socket (M2_1), supports M Key type
    2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64
    Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)*
    RAID-funksjoner

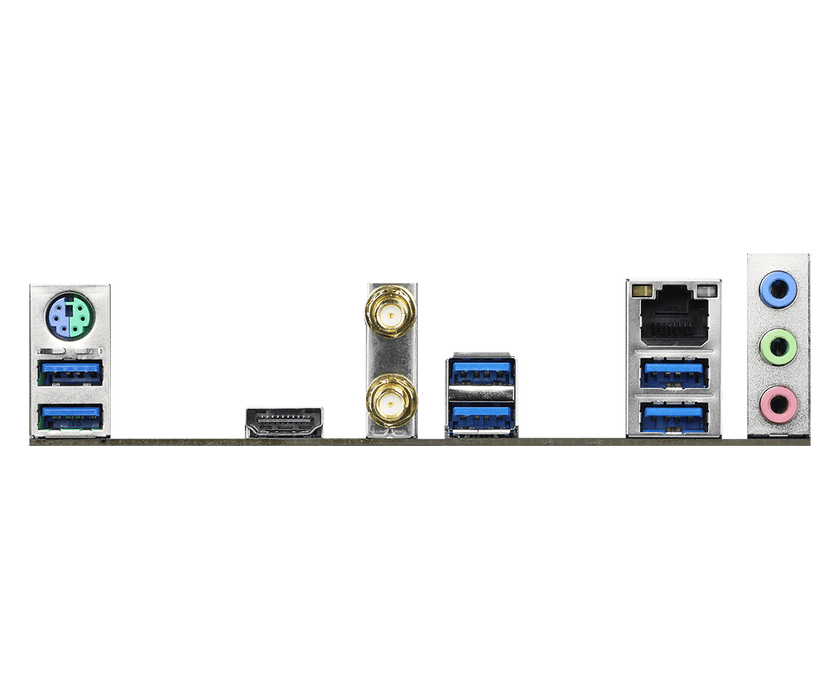

    Grensesnitt 2 x Antenna Ports
    1 x PS/2 Mouse/Keyboard Port
    1 x HDMI Port
    6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
    LED)
    HD Audio Jacks: Line in / Front Speaker / Microphone
    Interne overflater 1 x COM Port Header
    1 x SPI TPM Header
    1 x Power LED and Speaker Header
    2 x RGB LED Headers
    * Support in total up to 12V/3A, 36W LED Strip
    2 x Addressable LED Headers
    * Support in total up to 5V/3A, 15W LED Strip
    1 x CPU Fan Connector (4-pin)
    * The CPU Fan Connector supports the CPU fan of maximum
    1A (12W) fan power.
    1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
    Speed Control)
    4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
    Speed Control)
    * The Chassis/Water Pump Fan supports the water cooler fan of
    maximum 2A (24W) fan power.
    * CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_
    FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin
    fan is in use.
    1 x Front Panel Audio Connector
    2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD
    Protection)
    1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    (Supports ESD Protection)
    Strømkontakter 1 x 24 pin ATX Power Connector
    1 x 8 pin 12V Power Connector
    1 x 4 pin 12V Power Connector
    Egenskaper
    BIOS Type AMI
    BIOS-egenskaper
    Sov/Våkne ACPI 5.1 compliance wake up events
    Maskinvarefunksjoner
    Diverse
    Bredde 24.4 cm
    Dybde 30.5 cm
