ASUS GeForce STRIX GTX 970 4GB
Produktinfo
Kun skjermkort!
Get VR Ready with GeForce® GTX
GeForce® GTX graphics cards provide a powerful next-generation platform for the ultimate immersive virtual reality experience. Rigs and cards marked with “GeForce GTX VR Ready” ensure that your VR games will be optimized with a best-in-class GPU.
Immersive VR requires seven times¹ the graphics processing power of traditional 3D apps and games. NVIDIA’s unique set of features—such as multi-res shading—mean you get the right level of performance, image quality, and latency to ensure your VR experience is nothing short of amazing.
1) A PC game rendering at 1920x1080 at 30fps on a single screen compared to a VR headset rendering at 1680x1512 at 90fps on each of two screens http://blogs.nvidia.com/blog/2015/11/09/gameworks-vr-unreal-engine-4-ue4/
© 2015 NVIDIA Corporation. All rights reserved. NVIDIA, the NVIDIA logo, and GeForce are trademarks and/or registered trademarks of NVIDIA Corporation in the U.S. and other countries. Other company and product names may be trademarks of the respective companies with which they are associated.
ASUS GeForce® STRIX GTX 970 4GB GDDR5
- GPU : GeForce GTX 970, 1644 cores, 28nm
- GPU Clockspeed : 1253 MHz (boost) / 1114 MHz (base)
- Memory : 4096MB GDDR5 (256 bit)
- Memory Clockspeed : 7.0 Gbps
- Bandwidth : 224 GB/s
- Bus : PCI-Express 3.0
- Video-Features : HDMI 2.0
- Cooling : 2-Slot Cooling

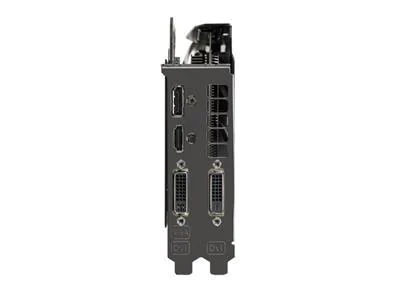

- Connectivity : DL-DVI-I, DL-DVI-D, HDMI 2.0, DisplayPort 1.2
- Product Size : x 288.6mm(L) 134.4 mm(W)
- Power Connector : 8-pin
- Power Consumption ; 146 W
Graphics card require:
- PCI Express-compliant motherboard with one dual-width x16 graphics slot
- 8-pin PCI Express supplementary power connectors
- Minimum 500W or greater system power supply (with a minimum 12V current rating of 42A)
- Microsoft Windows 8, Windows 7, Vista, XP
Key Features
- NVIDIA Maxwell GPU Architecture
- NVIDIA GPU Boost 2.0
- NVIDIA Adaptive Vertical Sync
- NVIDIA G-SYNC™
- NVIDIA TXAA™ technology
- NVIDIA FXAA™ technology
- NVIDIA PhysX® technology
- NVIDIA CUDA® technology
- NVIDIA 3D Vision®-Ready
- NVIDIA 3D Vision Surround™
- NVIDIA SLI®-Ready
- NVIDIA SHIELD™-Ready
- NVIDIA Super Resolution Technology
- NVIDIA GameWorks Technology
- NVIDIA GameStream Technology
- Microsoft DirectX 12 API
- PCI Express 3.0 support
- OpenGL 4.4 and OpenCL™ Support
- Get the best gaming, with NVIDIA GeForce Experience™ one-click drivers and settings
Spesifikasjoner
Generelt
|
Garanti (måneder) |
12 |
| Tilstand | Brukt |
| Status | Testet |
| Produktnummer | STRIX-GTX970-DC2OC-4GD5 |
|
Enhetstype |
Grafikkort |
|
Busstype |
PCI Express 3.0 x16 |
|
Grafikkprogram |
NVIDIA GeForce GTX 970 |
|
Kjerneklokke |
1114 MHz |
| Boost Clock | 1253 MHz |
|
CUDA-kjerner |
1664 |
|
Grensesnitt |
DVI-I DVI-D HDMI DisplayPort |
|
Støttede API |
Dual Slot Fan Cooler, Super Alloy Power-teknologi, 6 Phase PWM Design, ASUS DIGI+ VRM, GPU Tweak Streaming, ASUS DirectCU II with 0dB Fan Technology, HDCP |
|
EAN |
4716659895060 |
Minne
|
Størrelse |
4 GB |
|
Teknologi |
GDDR5 SDRAM |
|
Faktisk klokkehastighet |
7.01 GHz |
|
Bussbredde |
256-bit |
Systemkrav
|
Ekstrakrav |
8-pins PCI Express-strømkontakt |
|
Anbefalt strømforsyning |
Diverse
| Strømforbruk ved drift | 225 watt |
|
Bredde |
4 cm |
|
Dybde |
28 cm |
| Høyde | 14 cm |
